GENERAL INFORMATION
1-8
SPECTRAL PURITY
All parameters stated at RF level ≤ +7 dBm in Noise and ACP RF modes.
Harmonics:
< −30 dBc, typically < −40 dBc
Sub- and non-harmonics: For offsets > 10 kHz:
< −70 dBc for carrier frequencies ≤ 3 GHz
< −60 dBc for carrier frequencies ≤ 6 GHz
Residual FM (FM on CW): < 2.5 Hz RMS (typically 1.5 Hz) at 1 GHz in a 300 Hz to 3.4 kHz unweighted bandwidth

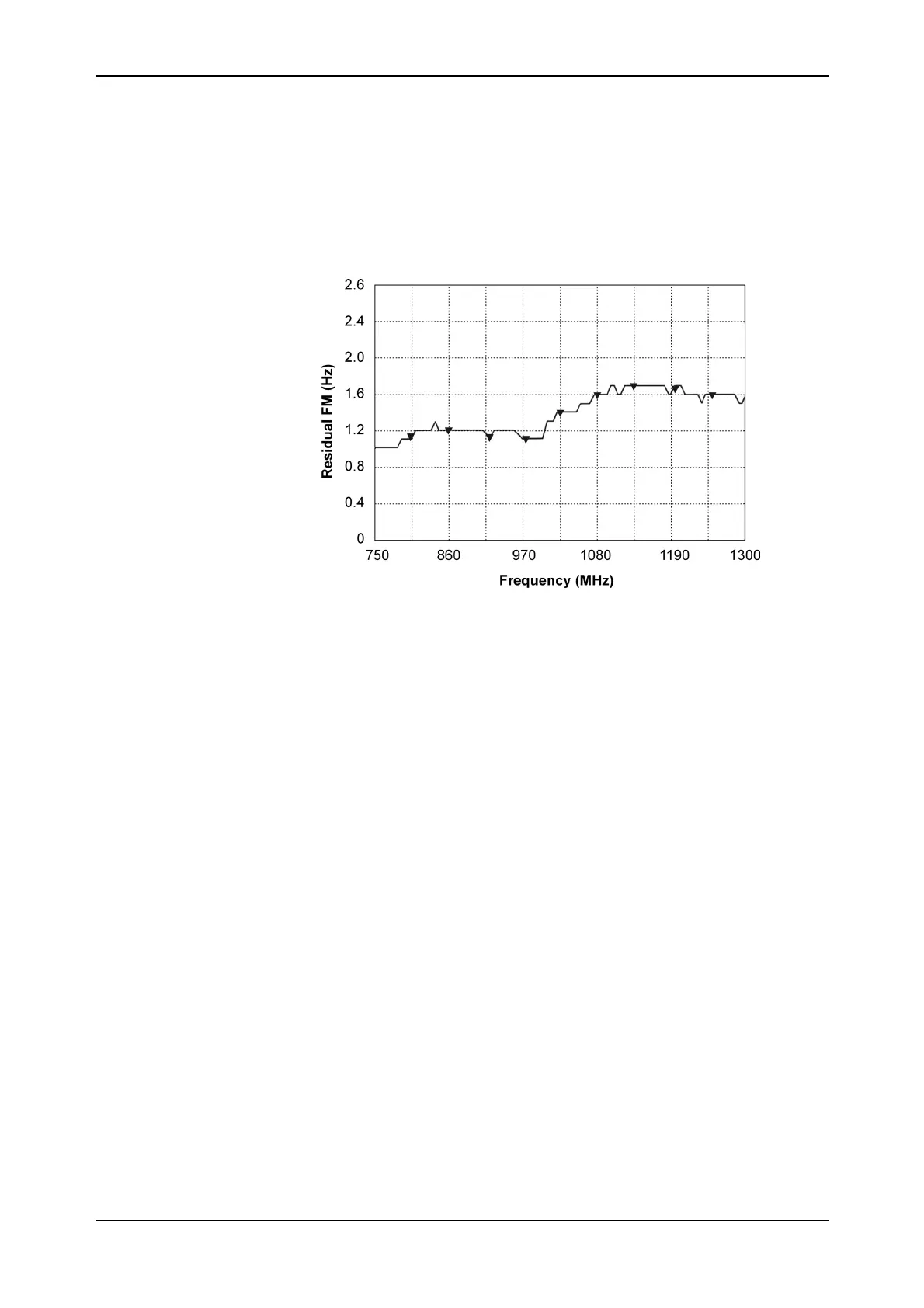

Typical residual FM
