Internal IQ set-up (ARB operation)
You can configure internal IQ modulation directly from the IQ sub-menus on the main screen.
1 Configure the modulation mode for internal IQ modulation (page 3-35).
2 Press
SIG
GEN
to show the main screen, and touch the
IQ
soft box to select the function.
Touch
IQ
...
and press
...

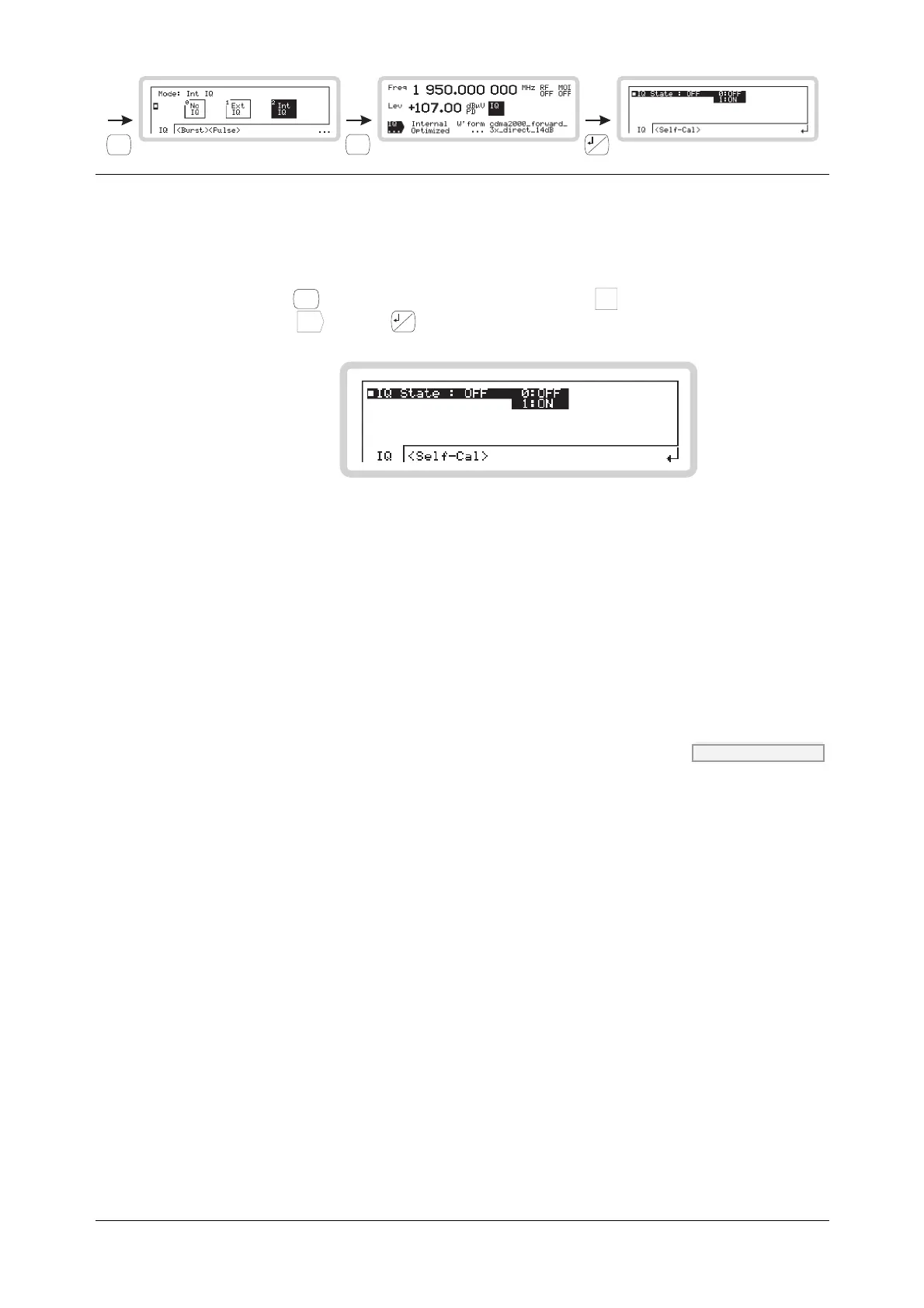

to view the internal IQ modulation menu (Fig. 3-27).
B5597
Fig. 3-27 Internal IQ
From this screen you can:
• Turn internal IQ modulation on or off
• Configure and perform a self-calibration on the I and Q signals.
Internal IQ menu — <IQ>
IQ State IQ:STAT page 4-103
Use the numeric keypad to turn internal IQ modulation on or off:
0 Off
1 On
