LOCAL OPERATION MODULATION: FM
ANALOG
MOD
B5451
SIG
GEN
B5450
...
B5240
3-98

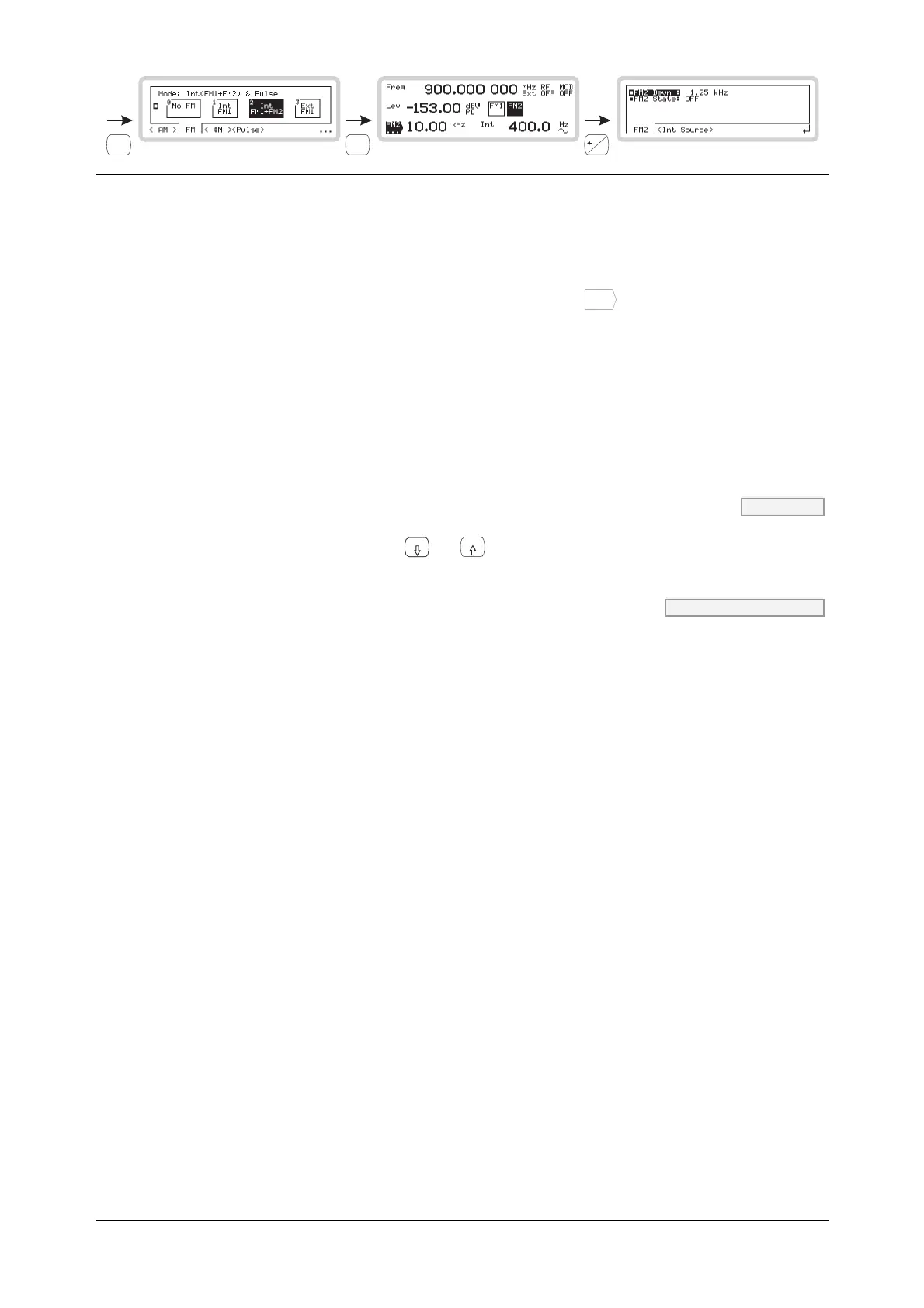

FM2 set-up
Use this menu to apply frequency modulation (on path 2) to the internal source.
The FM2 path only becomes available when you select composite modulation (FM1 + FM2).
Set up the FM2 path exactly as the FM1 path, but using the
FM2
...
function label.
FM2 sub-menu — <FM2>
From this menu you can:
• Specify the deviation of the modulating frequency
• Turn FM2 modulation source on and off.
FM2 Devn FM page 4-83
Use the numeric keypad or the
x10
and
10
keys to specify the FM2 deviation.
FM2 State OUTP:MOD:FM page 4-22
Use the numeric keypad to turn FM2 modulation source on or off:
0 Off
1 On
FM2 sub-menu — <Int Source>
From this menu you can:
• Specify the source’s frequency and waveshape
• Define the phase relationship of one path to another
• Set the resolution of the rotary control when defining the phase relationship.
Follow the instructions for Int Freq, Int Shape, Phase Diff and Sensitivity on page 3-104.
