OPERATIONAL VERIFICATION TESTING
6-22
7 Set both channels of the oscilloscope to 0.2 V/div and the timebase to X-Y. The
oscilloscope’s display should appear similar to Fig. 6-13.

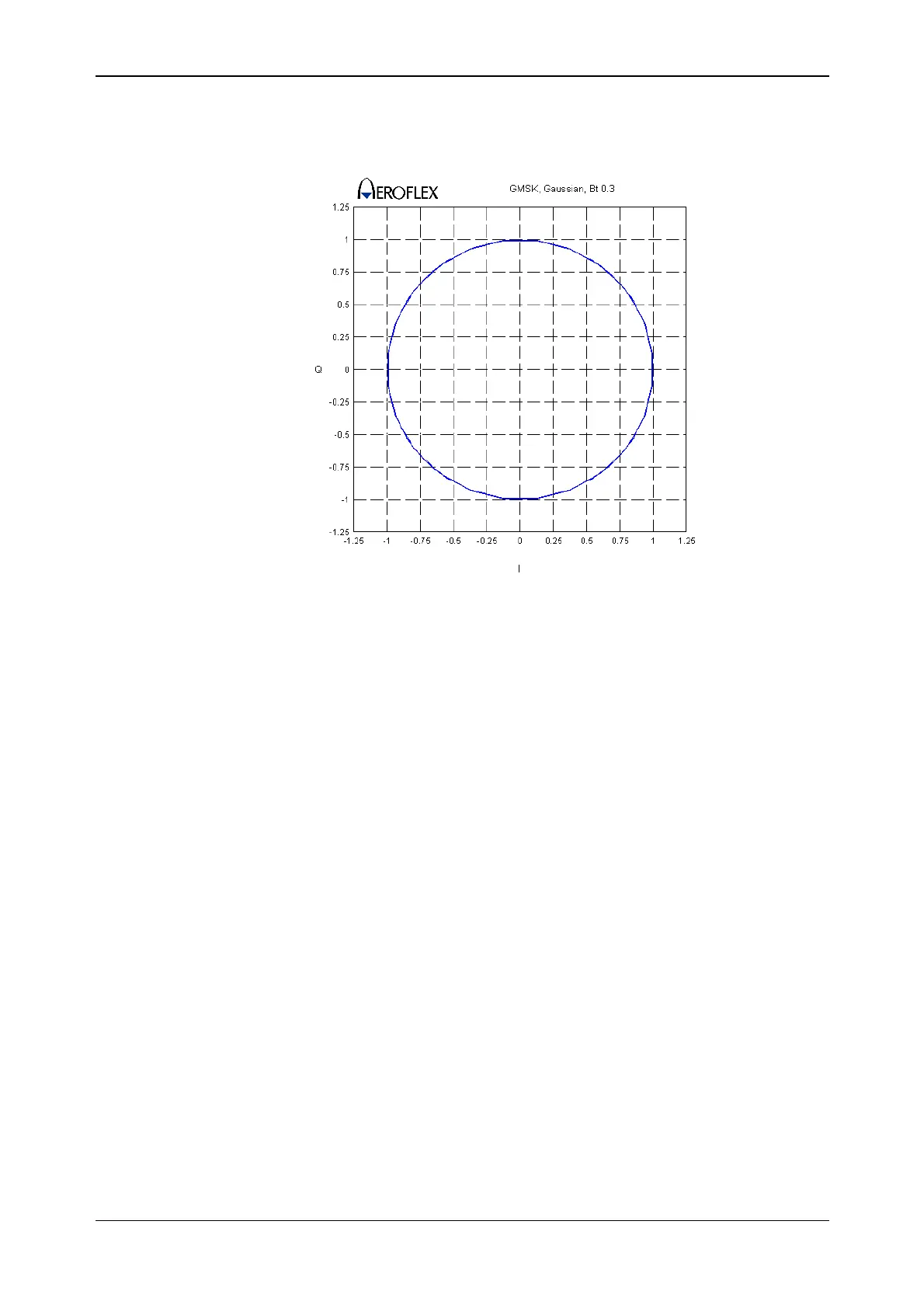

Fig. 6-13 Oscilloscope display showing GMSK
