2.4.2. Analog Output 1
Analog outputs are referenced to the analog common . The ground pin is set to zero when the system is
powered-up or during a system reset.
Table 2-16: Analog Output 1 Specifications
Specification Value
Output Voltage -5 V to +5V
Output Current 5 mA
Resolution (bits) 16 bits
Resolution (volts) 153 µV
Table 2-17: Analog Output Connector Pin Assignment
Pin# Description In/Out/Bi
14 Analog Output 1 Output
15 Ground N/A
PIN-15
PIN-14
GND
AOUT
20K
10K

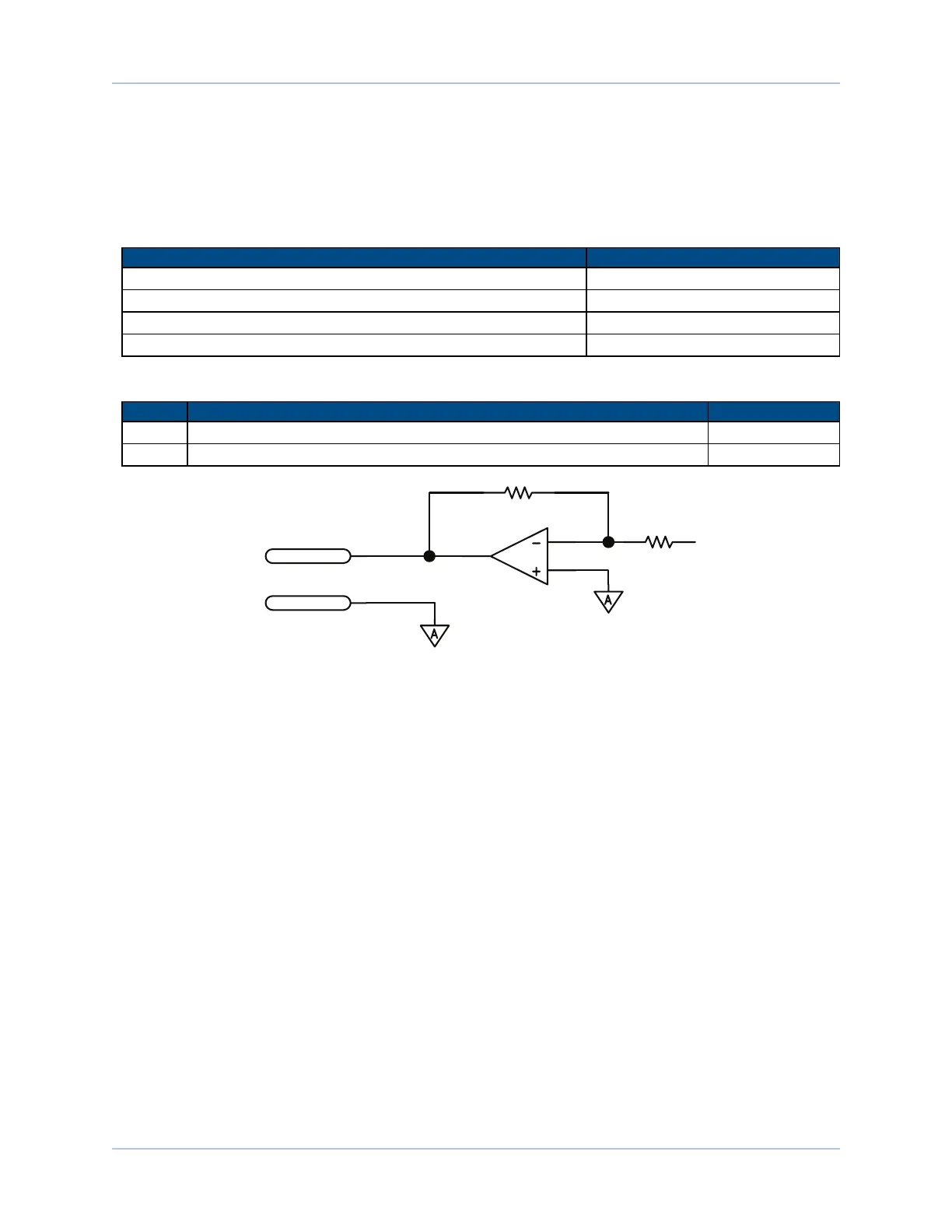

Figure 2-22: Analog Output 1
