Aerotech A3200 - DVI Connector

HEXRCHardware Manual Installation and Configuration
2.5. DVI Connector
The DVIconnector is a video display interface.
MOTOR / FEEDBACK
DIGITAL / ANALOG IO MPGA
DVI
USB2 USB3 ETHERNET FIREWIRE
ESTOP
1 2
1 2
3 4 5 6
DVI

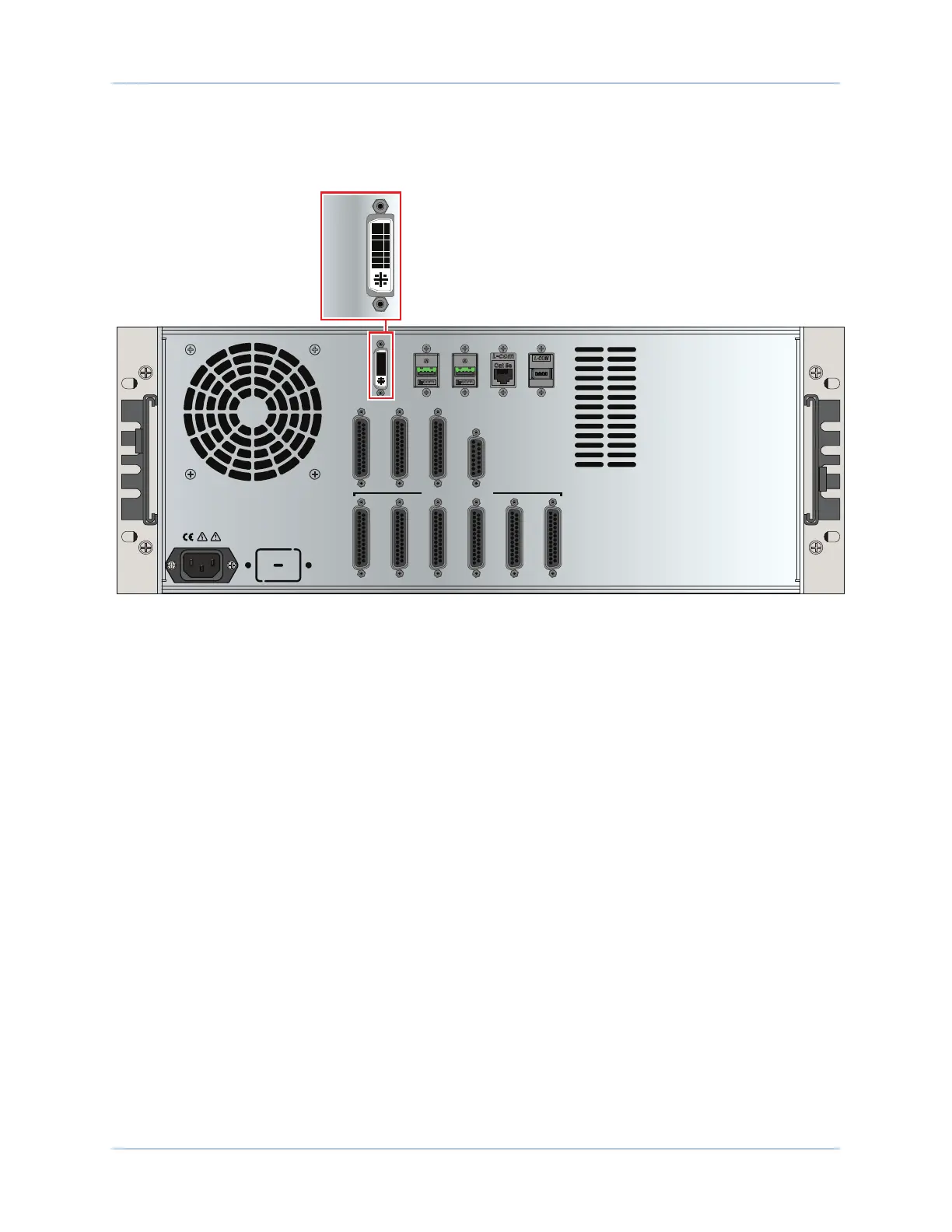

Figure 2-27: DVIConnector Location
38 Chapter 2 www.aerotech.com
