HEXRCHardware Manual Options

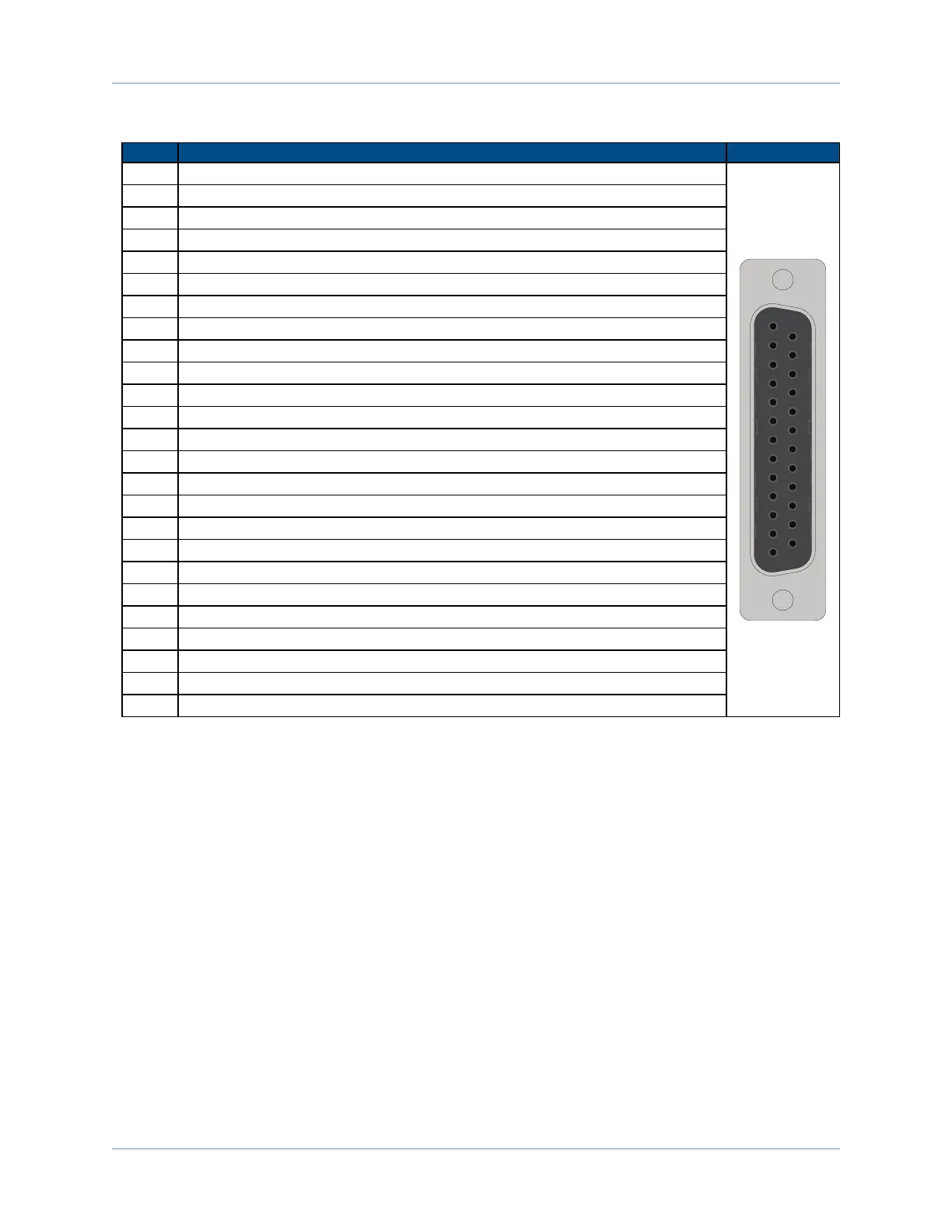

Table 3-5: MPGA Connector Pin Assignments
Pin# Description Connector
1 Shield
13
25
1
14
2 Common
3 A
4 B
5 24 V Input
6 Y Axis Switch
7 4 Axis Switch
8 6 Axis Switch
9 x10 Mult Switch
10 Reserved
11 Reserved
12 ESTOP NC1
13 ESTOP NC2
14 Reserved
15 5 V Input
16 A-N
17 B-N
18 Reserved
19 X Axis Switch
20 Z Axis Switch
21 x1 Mult Switch
22 x100 Mult Switch
23 Reserved
24 ESTOP NC1
25 ESTOP NC2
