4.1. Power Board Assembly
The HEXRC is factory wired for either 100/200 VAC or 115/230 VAC input voltage.
D A N G E R : Always disconnect the Mains power connection before opening the HEXRC
chassis. Fuses must not be changed with Mains power applied to unit.
Board Assembly
Drawing Number: 690D1645, Rev. -1
BW6
++
BW4
TB5
1
J1
DS1
1
TB3
1
TB4
1
TB6
1
TB1
1
TB2
B
A
S2
MATE:
ECK00213
MATE: ECK01577
MATE:
ECK00213
MATE: ECK01577 MATE: ECK01577 MATE: ECK01577
MATE: ECK01577
MATE:
ECK00213
B
A
S1
1
TB7
1
TB8
1
BW5
C2
C1
BR2
BR1
F3
3ASB 3AG
F4
4ASB 3AG
F1
3ASB 3AG
F2
4ASB 3AG
TR1 5 OHM TR2 5 OHM
K1

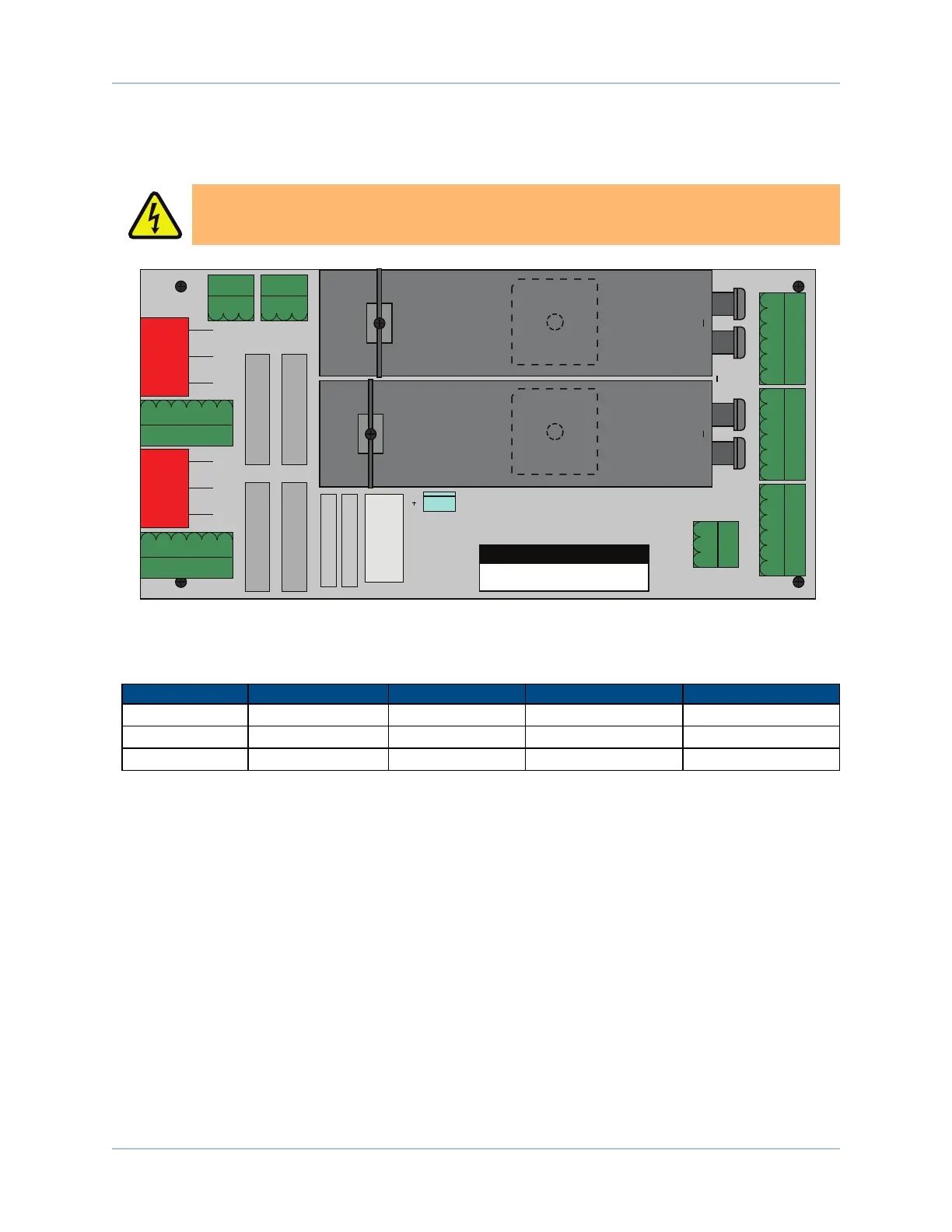

Figure 4-1: Power Board
Table 4-1: Component Select
Component 100/115 VAC 200/230VAC Bipolar Unipolar
SW1, SW2 B A - -
BW4, BW6 - - Factory Select Installed
BW5 - - Installed Factory Select
