170 Agilent 1200 Series Autosampler Reference Manual
4 Repairing the Autosampler

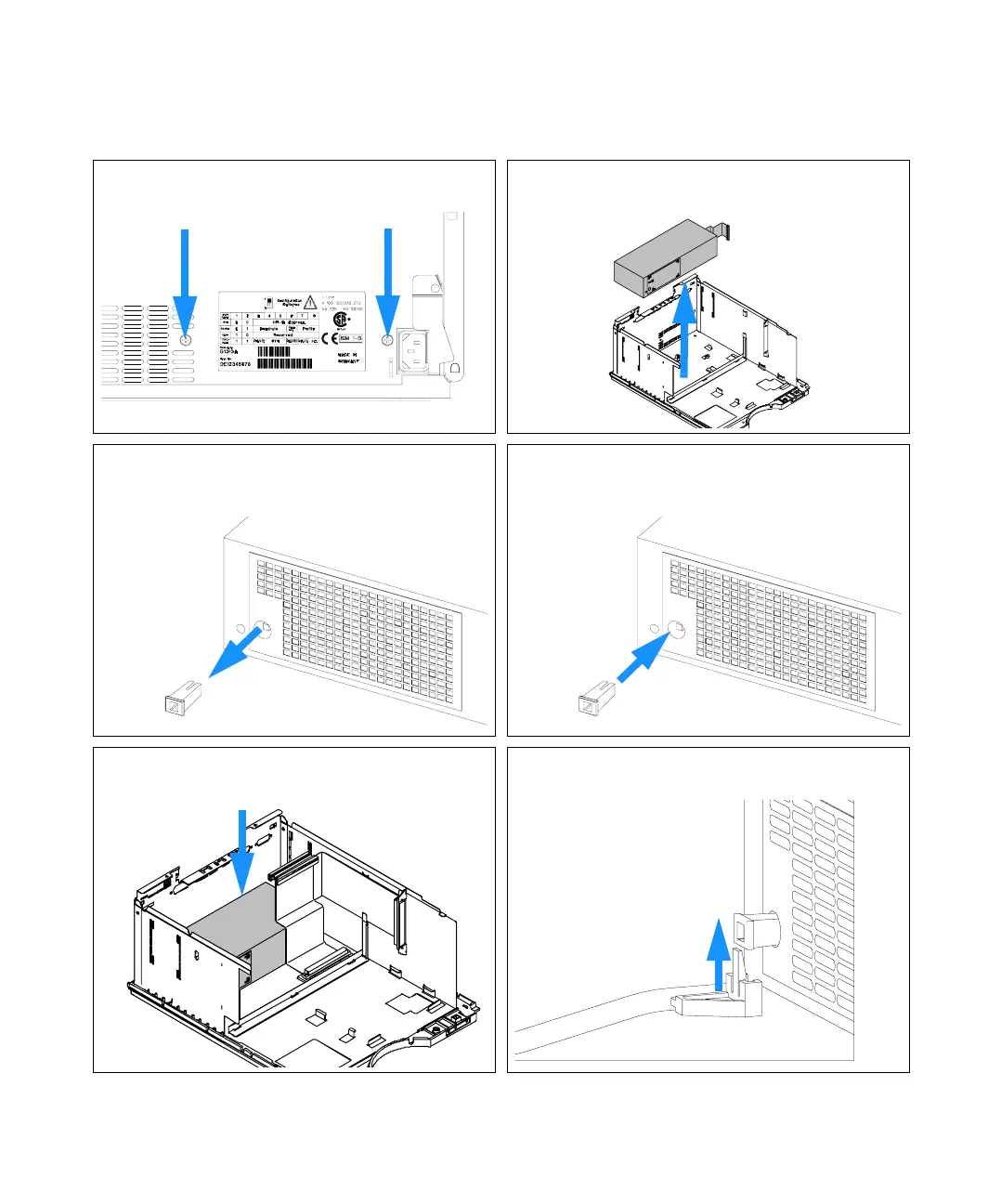

3 Remove the two screws from the rear panel. 4 Lift the power supply out of the module.
5 Remove the coupler from the of the power supply. 6 Insert the coupler onto the switch of the new power
supply.
7 Install the power supply in the module. 8 Connect the light pipe to the coupler.
