Chapter 7: Site Preparation – Compressed Air and Vacuum Requirements: Compressed Air Requirements
3000 Push-tite 1/4-inch female coupling or equivalent
(Agilent PN 0100-1655). The testhead air input
connector is shown in Figure 7-1 on page 7-3.

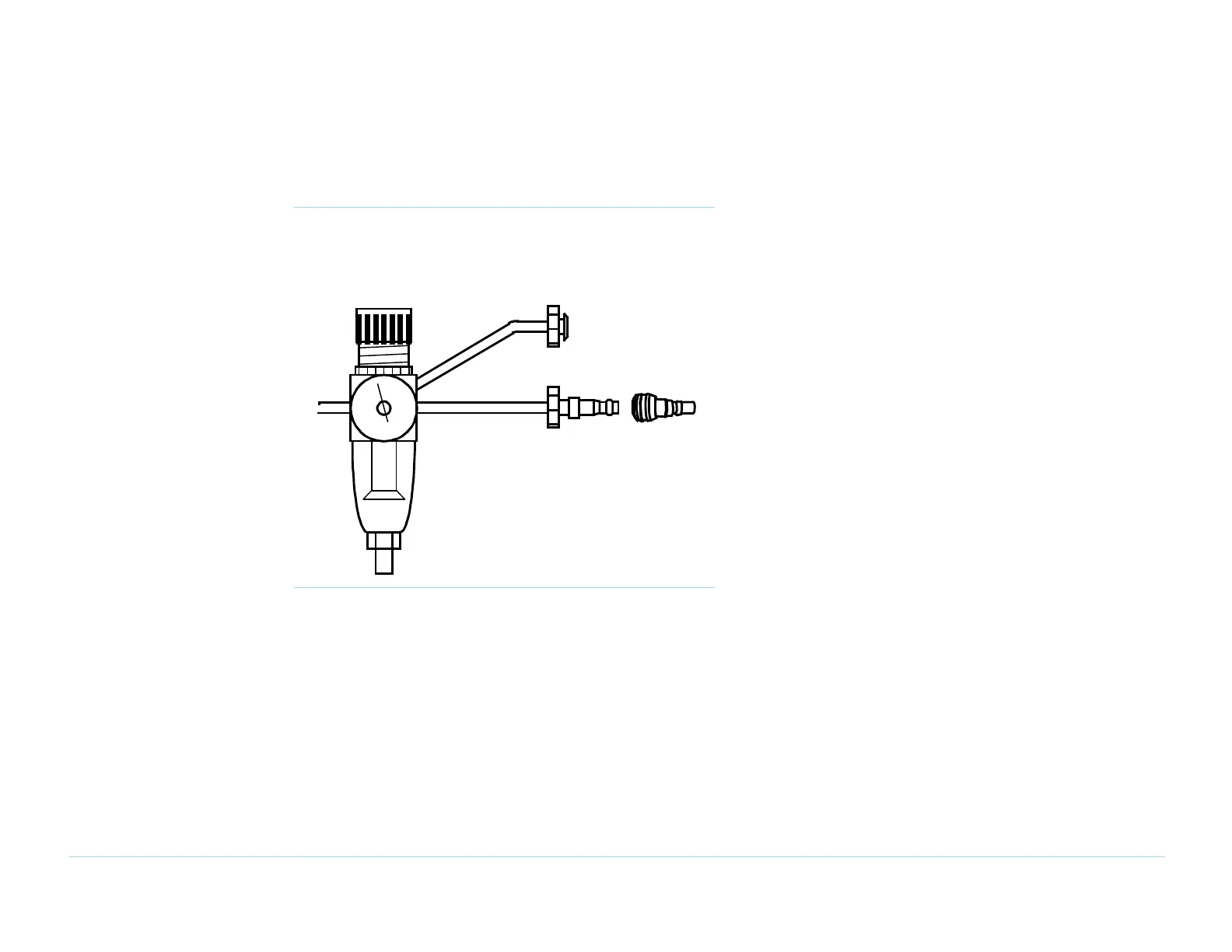

Figure 7-1 Compressed air connection to the testhead
Air Quality
The compressed air must be oil-free and must meet the
humidity specifications in Table 7-1. We recommend
that the air be filtered to remove contaminants such as
oil and aerosols. The filter should filter 0.3-micron
particles.
AIR2.WPG
03066-67911
Air Output for
external
applications
Air Input
connector on
rear of testhead
Air regulator
inside testhead
0100-1655
female
coupling
