© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 6-28
Chapter 6: Site Preparation – Power Requirements: PDU Wiring Diagrams

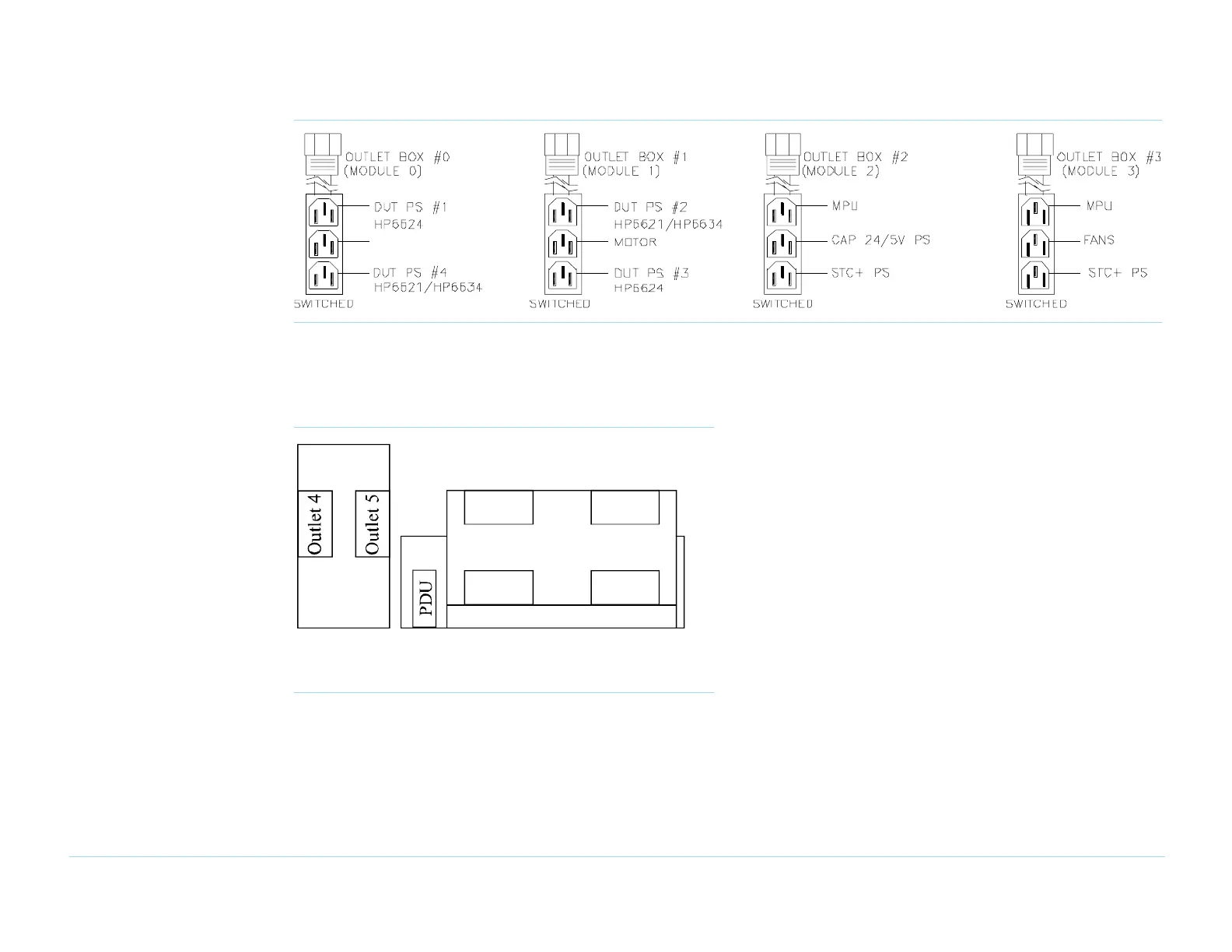

Figure 6-20 317X Option 3PN
307X 4-Module System AC Outlets
Figure 6-21 307X 4-module system
Outlet 0
Support Bay
(Rear View)
Testhead (Rear View)
Outlet 2
Outlet 3Outlet 1
