Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2000)
200-240 3-phase Delta (0ED, 05C, 05H, 0E6)

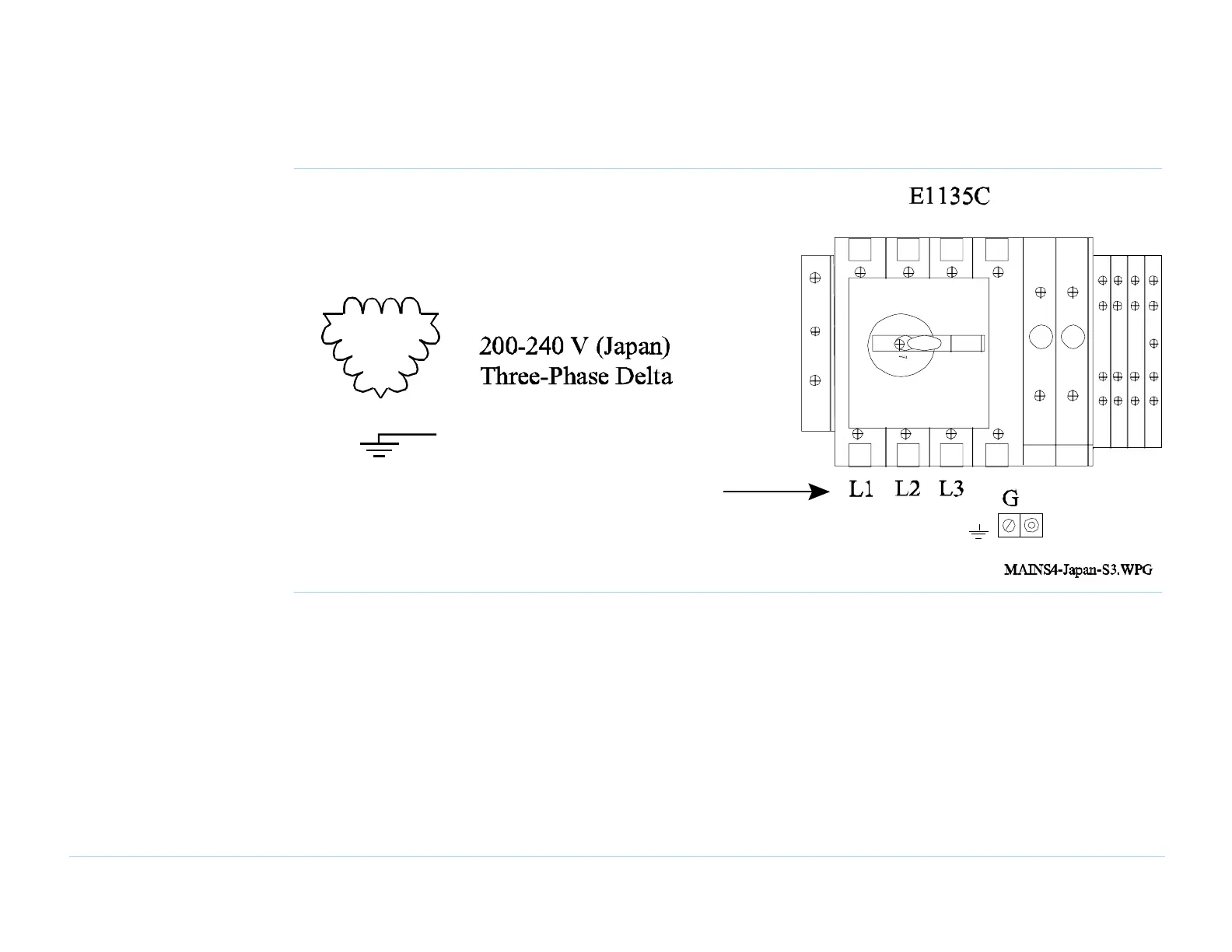

Figure 10-65 200-240 3-phase delta (0ED, 05C, 05H, 0E6)
L3L2L1 N
N 10A 10A
G
1
0
T3T2T1
G
Connect Input
Line here
L1
L3 L2
G
