© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-107
Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2000)
220–240 V Single-Phase Earthed (05M, 05F, 05J)

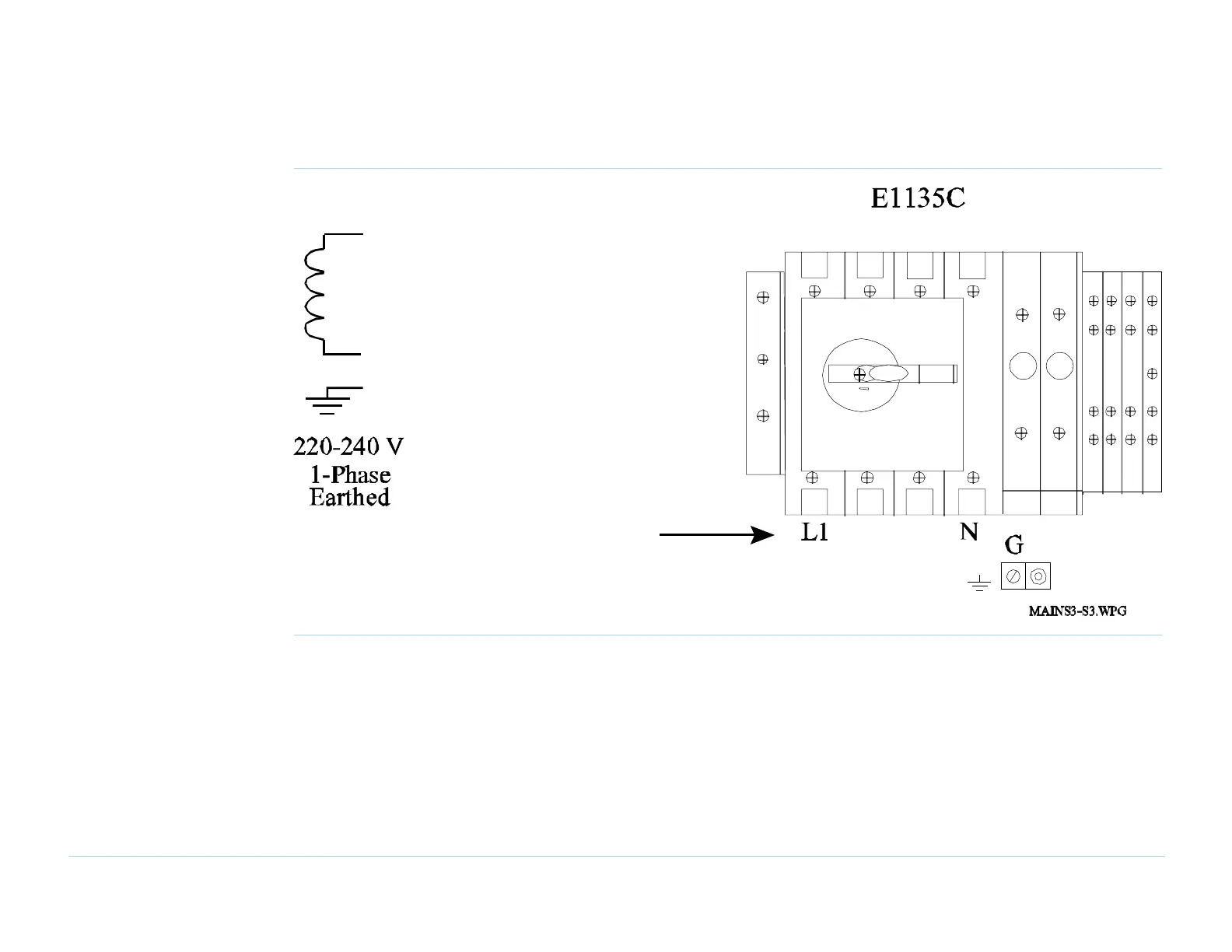

Figure 10-67 220–240 V Single-phase earthed (05M, 05F, 05J)
Set
L3L2L1 N
N 10A 10A
G
1
0
T3T2T1
G
Connect Input
Line here
L1
N
G
