Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2000)
200–240 V Single-Phase Non-Earthed (AWX, 0EB,
0EJ, 0EC)

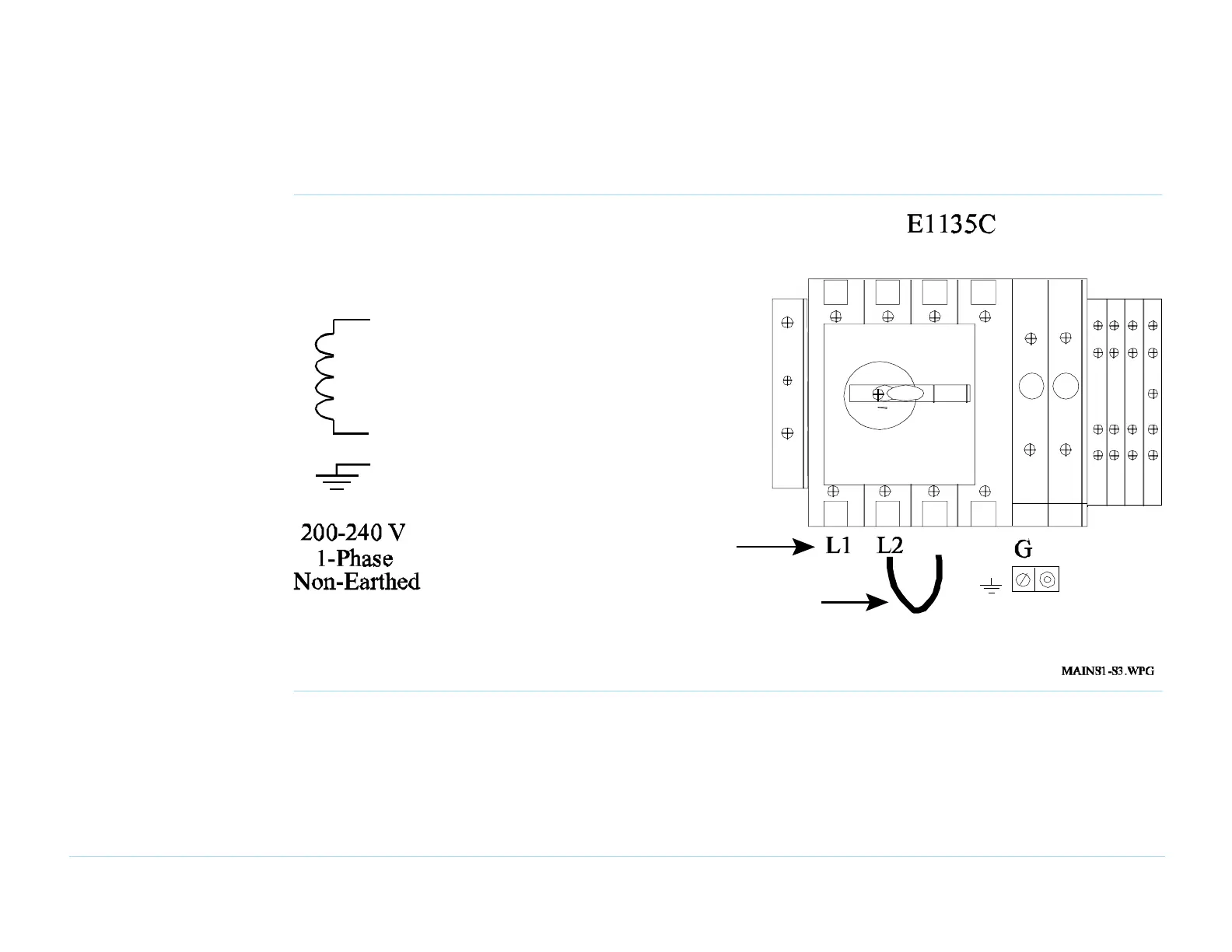

Figure 10-68 200–240 V Single-phase non-earthed (AWX, 0EB, 0EJ, 0EC)
L3L2L1 N
T3T2T1 N 10A 10A
G
1
0
G
Jumper L2-L3
Connect Input
Line here
L1
L2
G
