Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2000)
100/200-120/240 V Single-Phase Center-Tap
Neutral (AWY, 0E3, 0EG, 0EH)

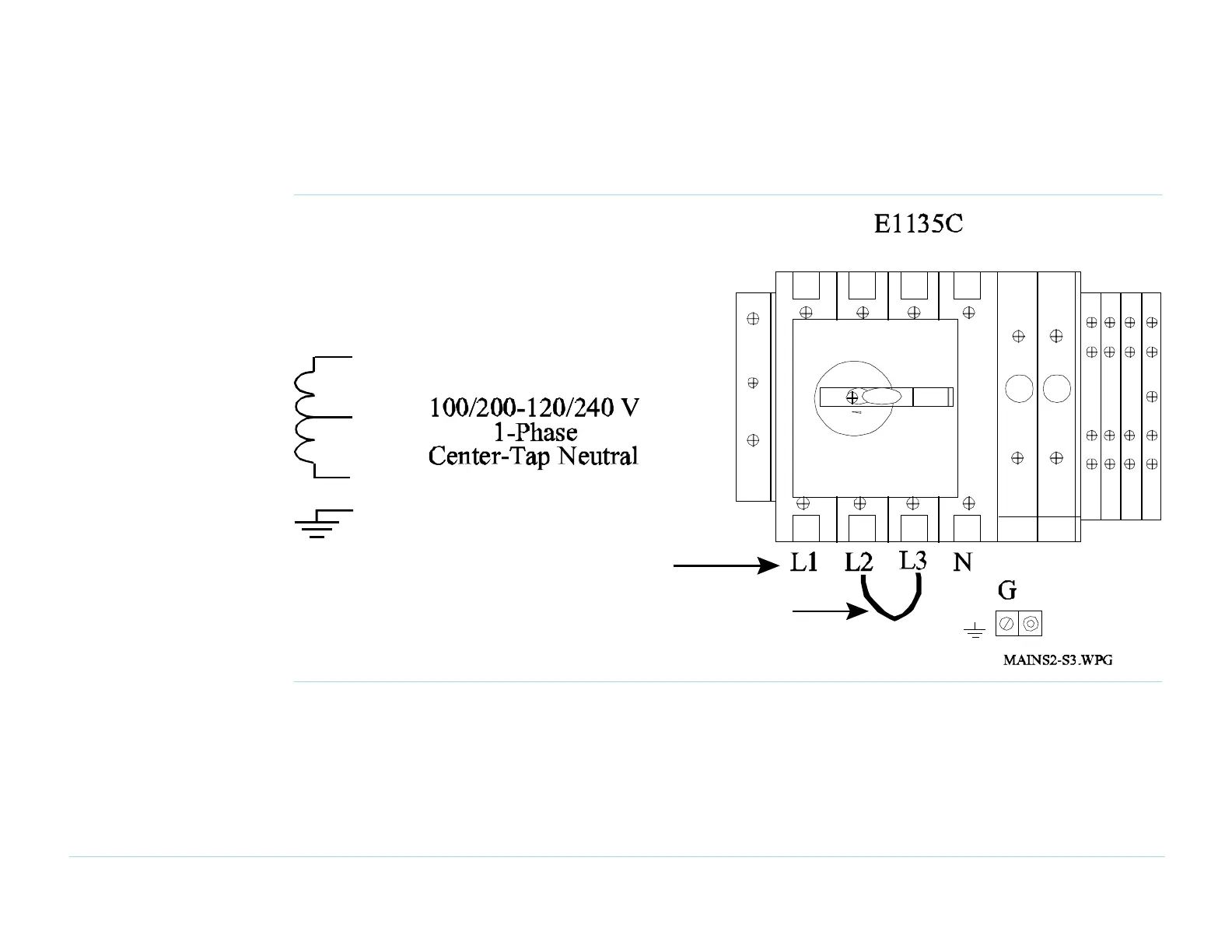

Figure 10-66 100/200-120/240 V Single-phase center-tap neutral (AWY, 0E3, 0EG, 0EH)
L3L2L1 N
N 10A 10A
G
1
0
T3T2T1
G
Jumper L2-L3
Connect Input
Line here
L1
L2
G
N
