Chapter 11: Site Preparation – Series 3 / 79000 Current Reduction Conversion: Series 3 Current Reduction Conversion Procedure
307X 4-Module 2-PDU System AC Outlets
Beginning with the release of Series 3, with 4-module
2-PDU systems, the DUT power supplies are connected
directly to the E1135C PDU, and there are no outlet
boxes in the support bay, as shown in
Figure 11-51.
Since each of these options are single-phase, which
outlet a DUT power supply connects to does not affect
the load balance, but knowing where each power supply
is plugged in helps when servicing the system.

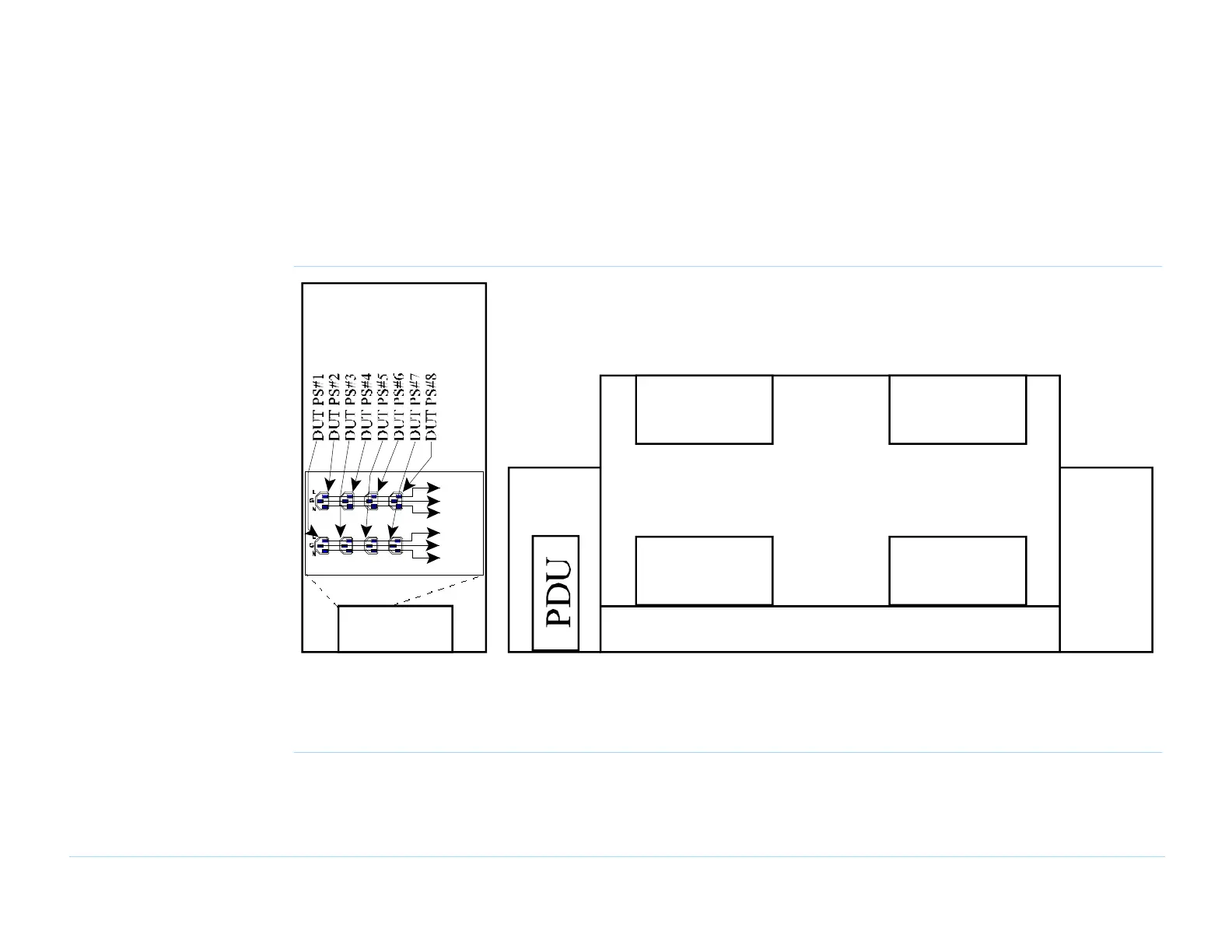

Figure 11-51 307X 4-module 2-PDU system
Outlet 0
Support Bay
(Rear View)
Testhead (Rear View)
PDU
Branch
Main
Outlet 2
Outlet 3Outlet 1
5678
To Gnd
1234
To Gnd
See Table
See Table
See Table
See Table
