© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 11-73
Chapter 11: Site Preparation – Series 3 / 79000 Current Reduction Conversion: Series 3 Current Reduction Conversion Procedure

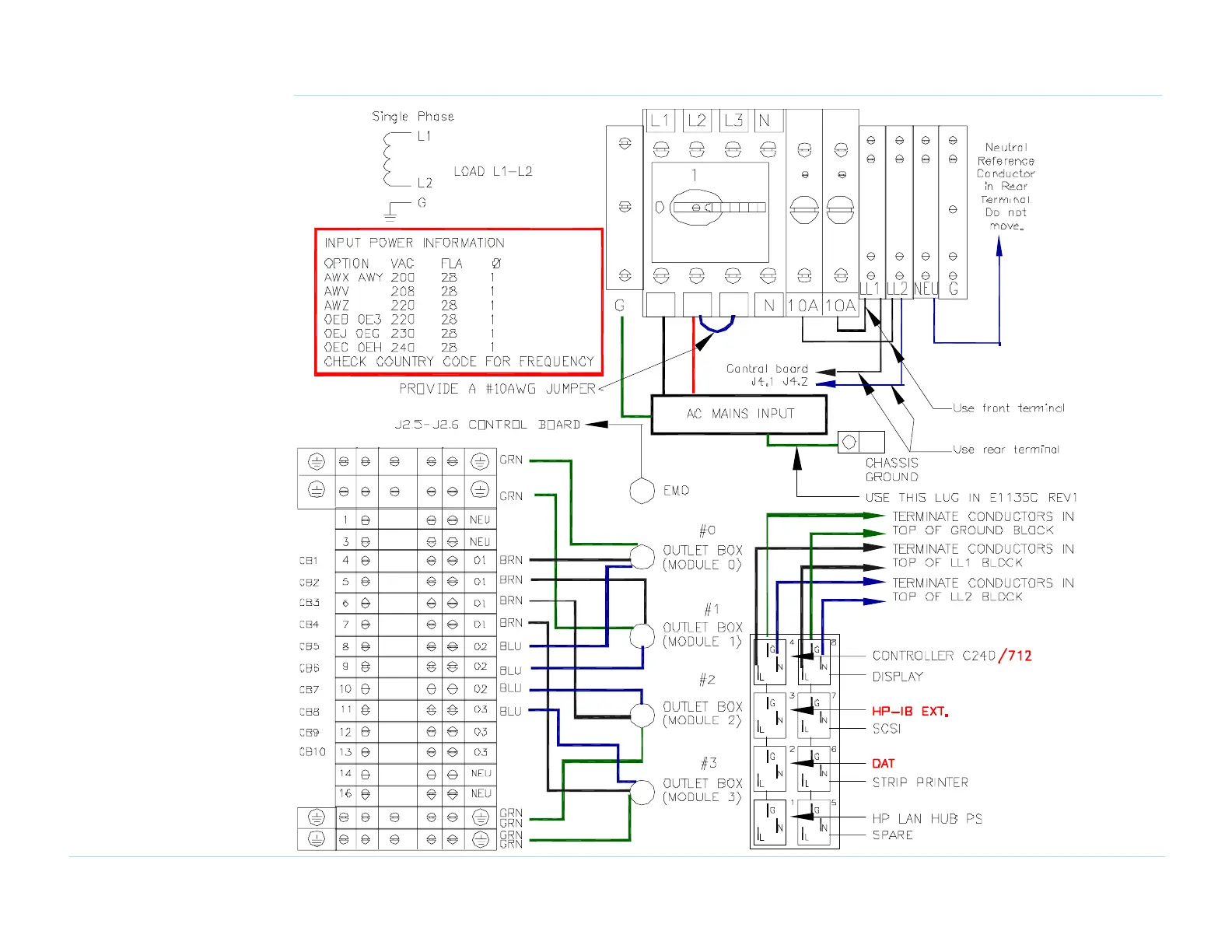

Figure 11-52 3070 2-PDU AWX, AWY, AWV, AWZ, 0EB, 0E3, 0EJ,0EG, 0EC, 0EH
3070LL_1.wpg
T1 T2 T3
