© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 7-6
Chapter 7: Site Preparation – Compressed Air and Vacuum Requirements: Vacuum Requirements

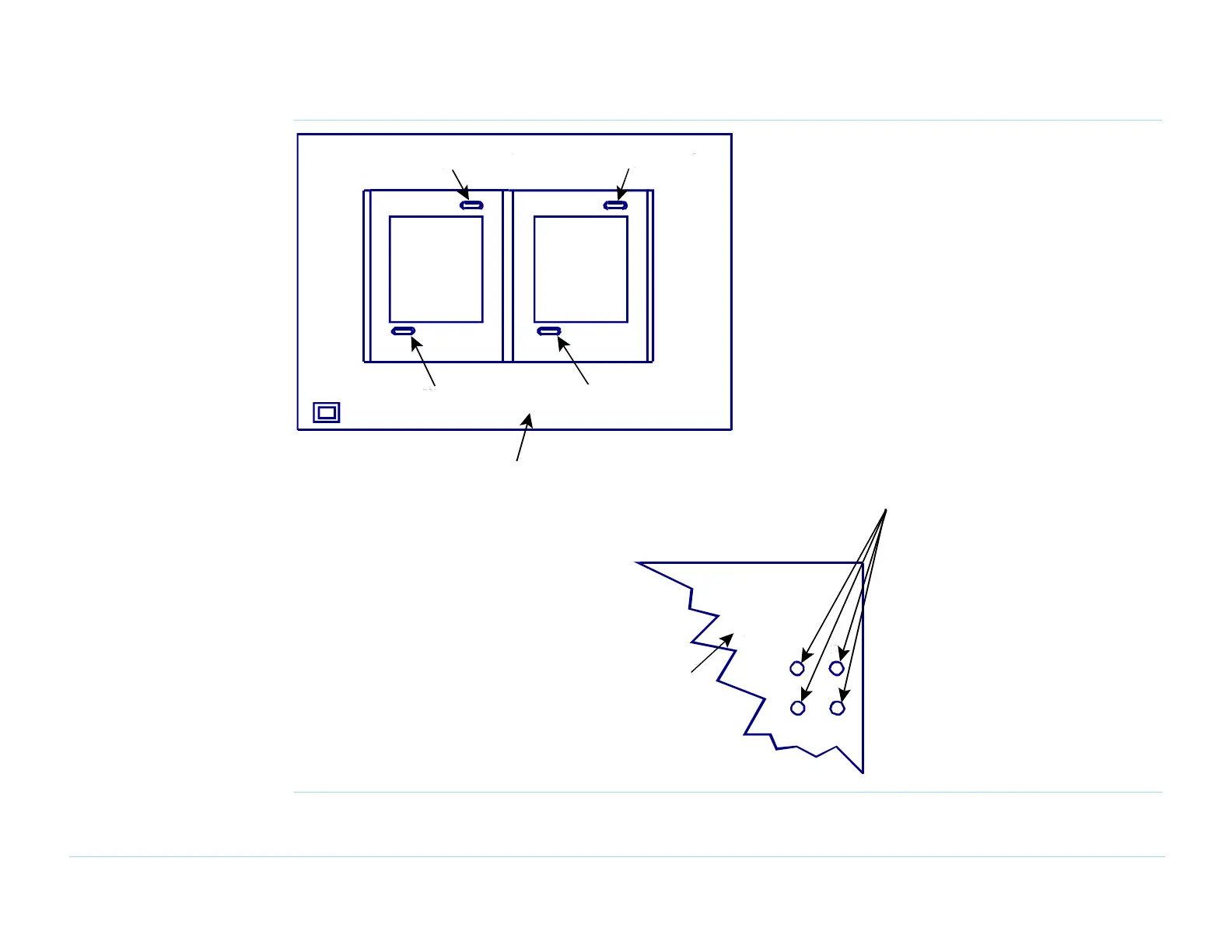

Figure 7-2 307X Series I, II vacuum ports
Vacuum Outlet 2
site_prep5.wpg
Top of Testhead
Rear of Testhead
23
01
Vacuum Ports,
1-inch, male
connectors
Vacuum Outlet 0
Vacuum Outlet 3 Vacuum Outlet 1
