Chapter 8: Site Preparation – Communications Cabling Requirements: Local Area Network Requirements

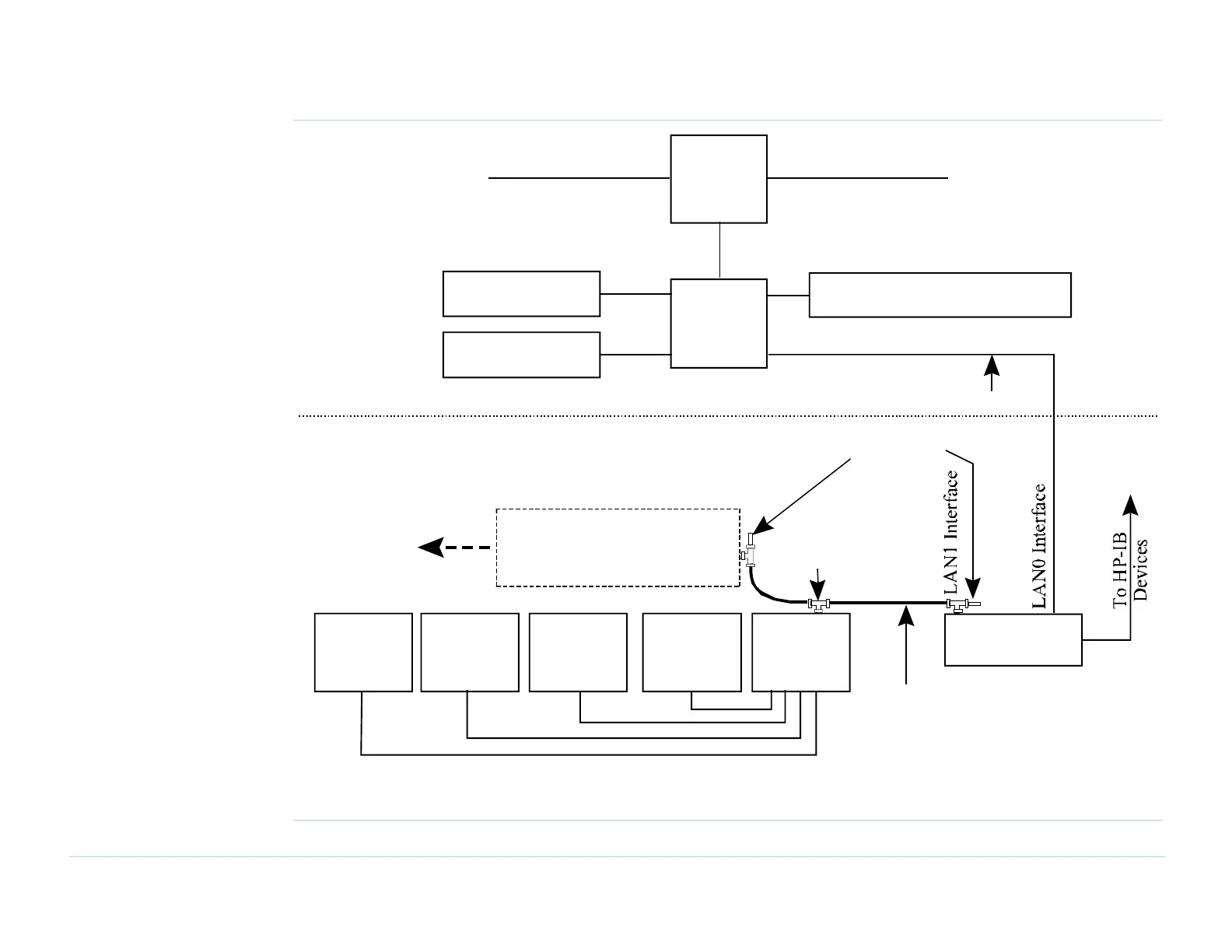

Figure 8-2 An example of 3070 Series II network
15.3.112.3
Optional LAN/Gateway for
712/60/100 Controllers only
15.3.112.2
Sys Card
HUB
10BaseT
50 5 Terminator
1250-0207
Test Development
Center
Router /
Gateway
as needed
Public LAN
/Backbone
Public LAN
/Backbone
System 1 on Hub
System 2..n on Hub
s2lan
Testhead
Controller
BNC Tee
1250-0781
To HP-IB
Devices
Test Development
Station
External Site Lan
Internal Testhead Lan
Mod. 0
Control
Mod. 1
Control
Mod. 2
Control
Module 3
Control
10Base2
Control Cables E1170-61604
