© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-16
Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2001)
Single-Phase Center-Tap
Neutral
AWY 100 /
200
Figure 10-7 on
page 10-22
Figure 10-18
on page 10-33
Figure 10-29
on page 10-44
Figure 10-46
on page 10-61
Figure 10-48
on page 10-63
Figure 10-58
on page 10-74
0E3 110 /
220
Figure 10-7 on
page 10-22
Figure 10-18
on page 10-33
Figure 10-29
on page 10-44
Figure 10-46 Figure 10-48
on page 10-63
Figure 10-58
on page 10-74
0EG 115 /
230
Figure 10-7 on
page 10-22
Figure 10-18
on page 10-33
Figure 10-29
on page 10-44
Figure 10-46
on page 10-61
Figure 10-48
on page 10-63
Figure 10-58
on page 10-74
0EH 120 /
240
Figure 10-7 on
page 10-22
Figure 10-18
on page 10-33
Figure 10-29
on page 10-44
Figure 10-46
on page 10-61
Figure 10-48
on page 10-63
Figure 10-58
on page 10-74
1. POTS and xDSL bays always require a separate power drop. Use the POTS/xDSL power options that is on the same line as the system power option.

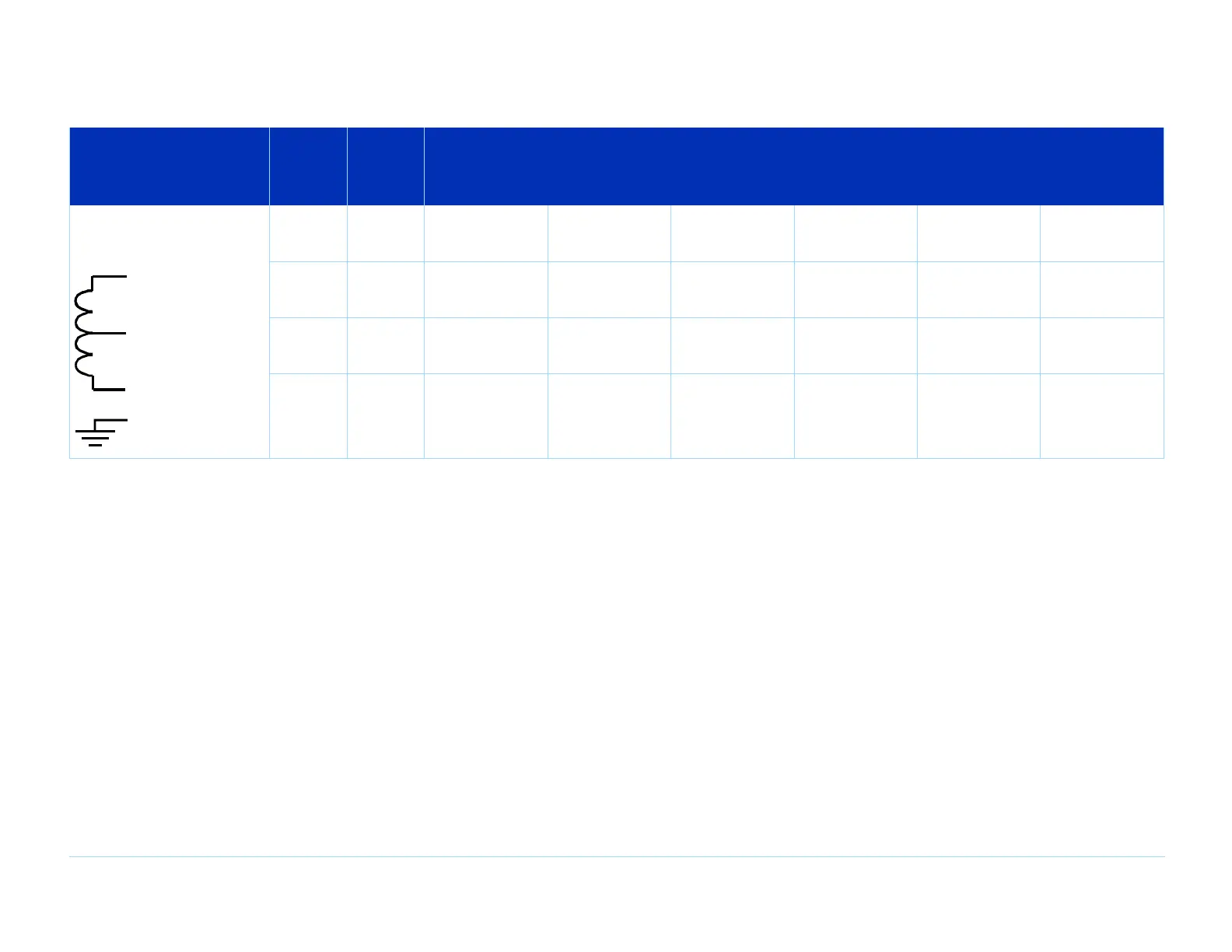

Table 10-4 Series 3 and 79000 family wiring diagram (single-phase power) (continued)
