© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-54
Chapter 10: Site Preparation – Power Requirements for Older Systems: Series 3 Power Requirements and Connections (Prior to May 2001)

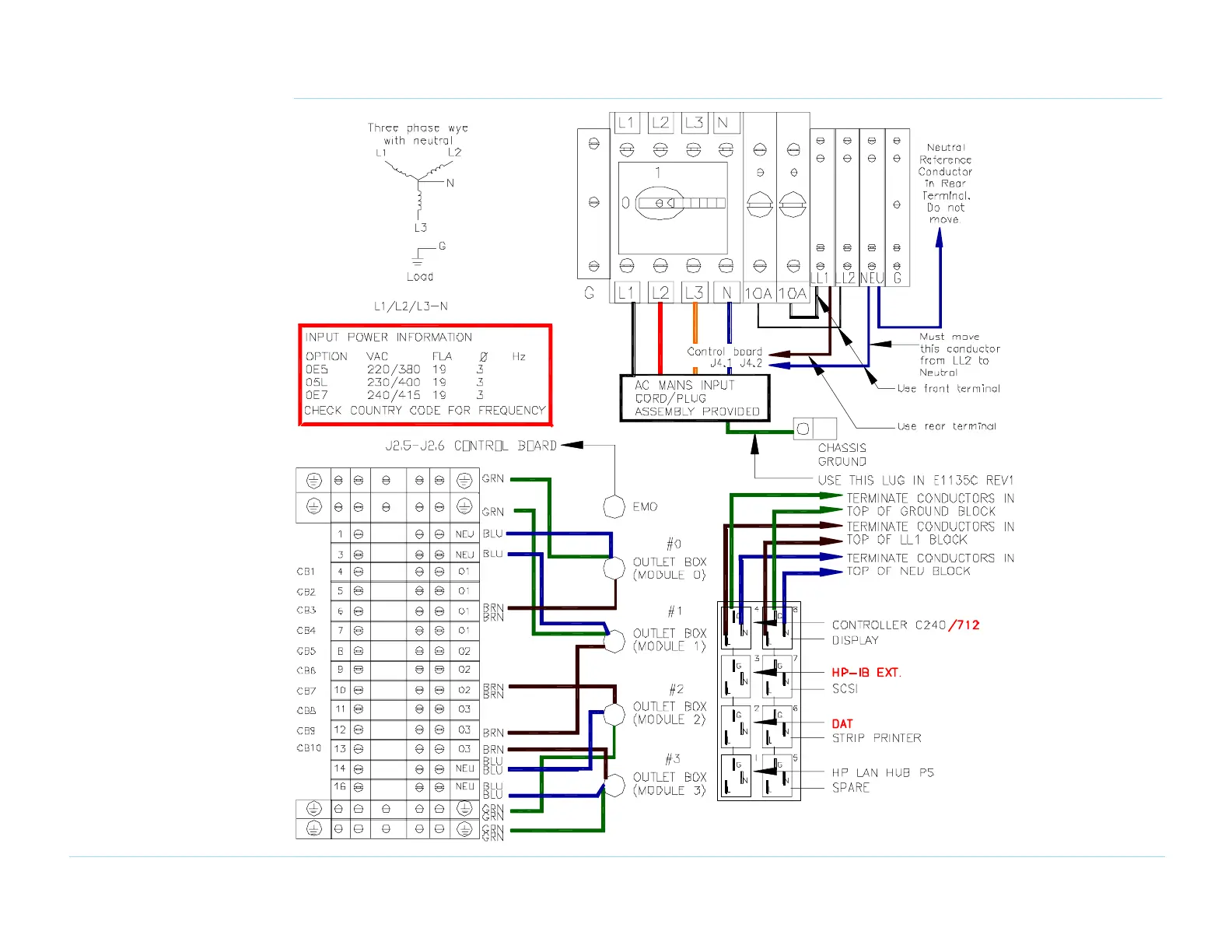

Figure 10-39 3070 1-PDU 0E5, 05L, 0E7
30LLLN_1.wpgUnswitched
(Fused)
