Agilent Technologies 3070 Series - Page 308

© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-147
Chapter 10: Site Preparation – Power Requirements for Older Systems: Connecting Mains Power To The System

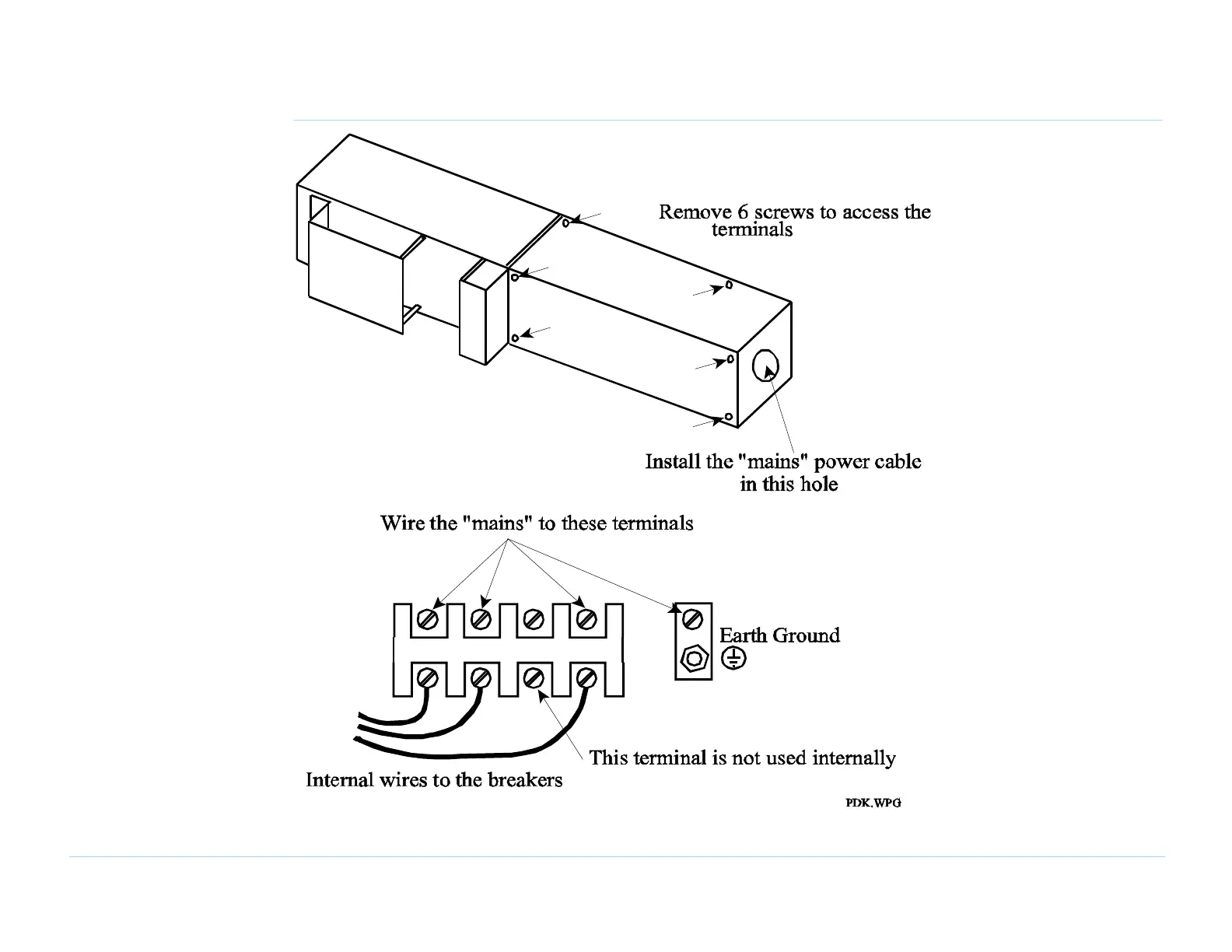

Figure 10-71 Accessing the mains terminals in the E1170-80003 PDK
