Agilent Technologies 3070 Series - Page 316

© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 10-155
Chapter 10: Site Preparation – Power Requirements for Older Systems: Connecting Mains Power To The System

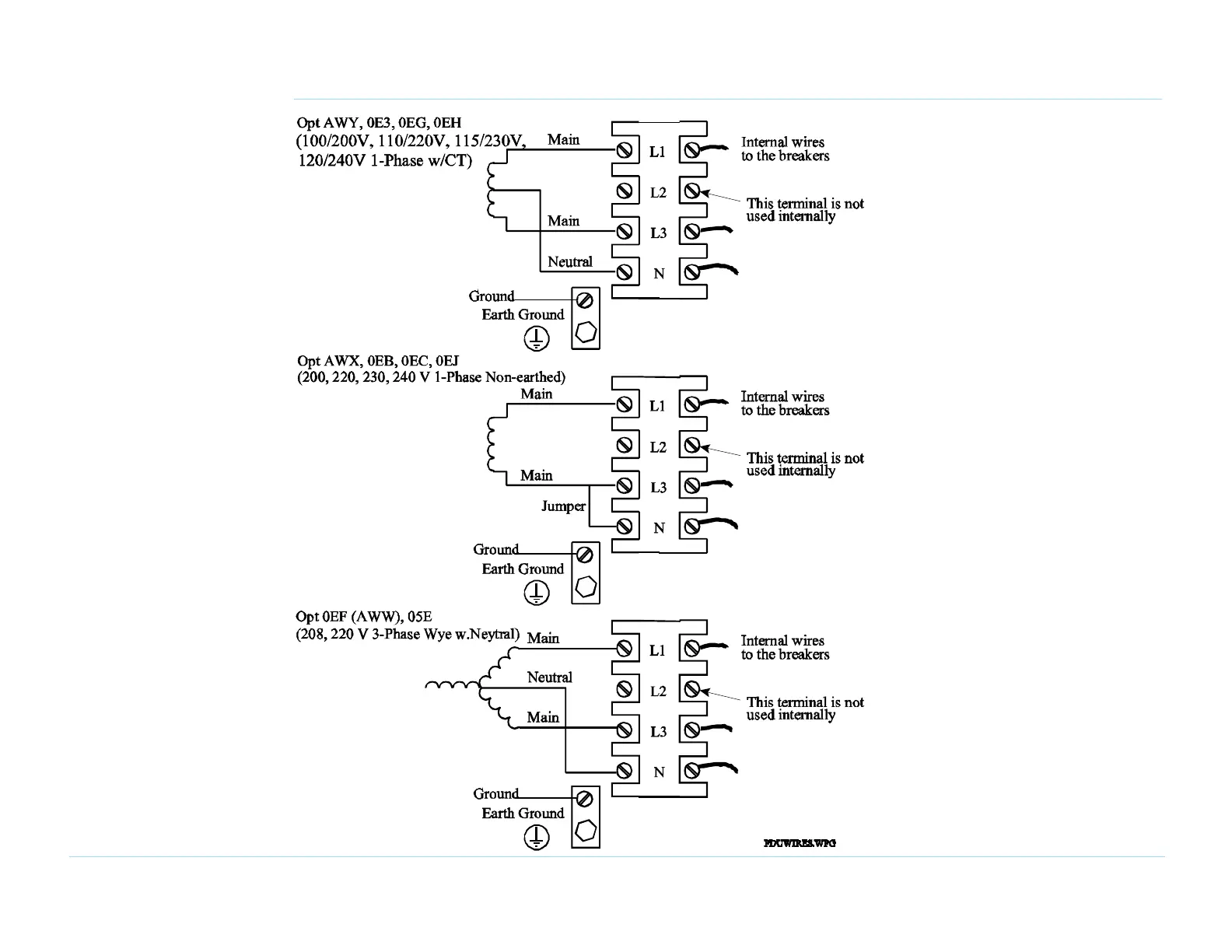

Figure 10-75 Wiring the mains to the E1131A PDU
