© Agilent Technologies 1989–2002 Agilent 3070 / 79000 Site Preparation 6-4
Chapter 6: Site Preparation – Power Requirements: Identifying Your System

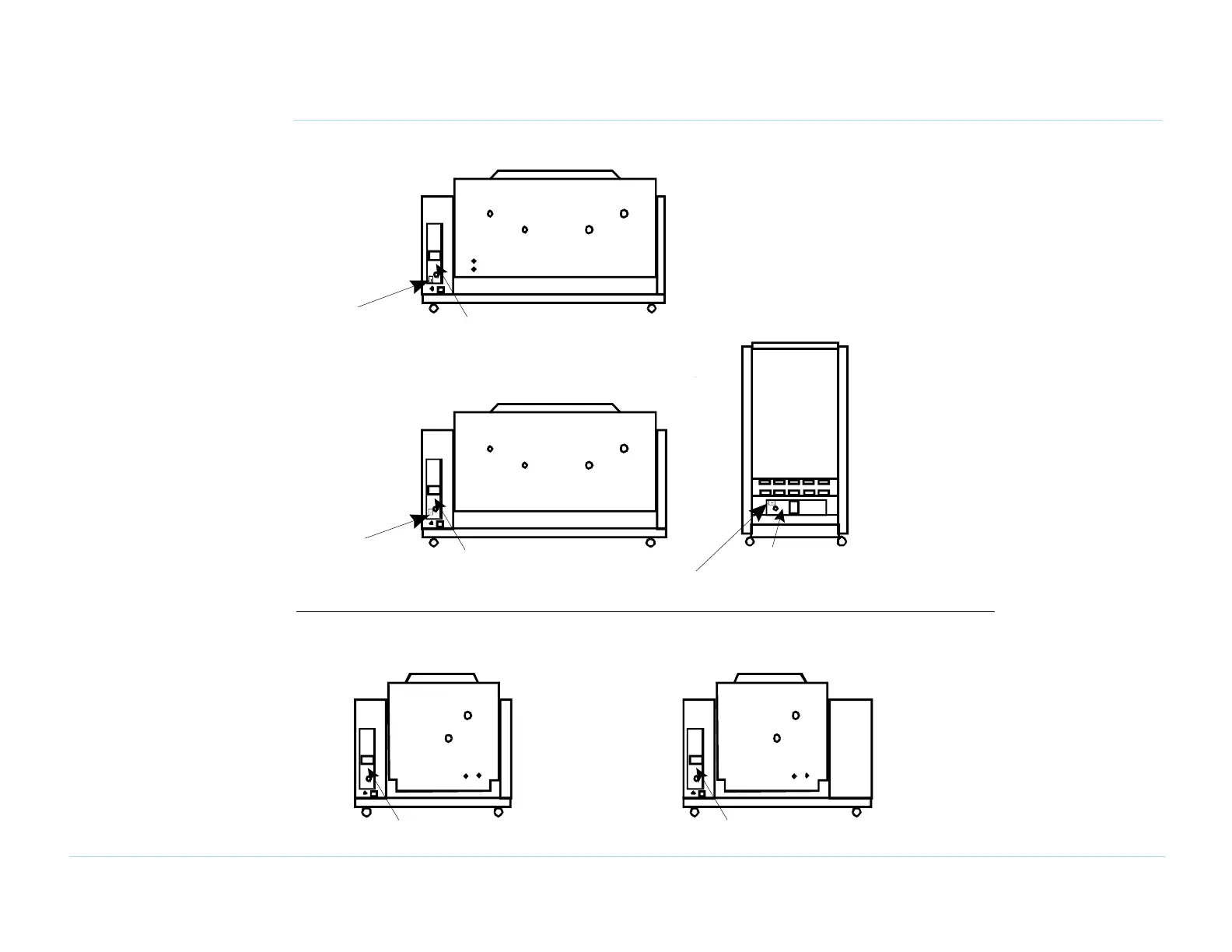

Figure 6-2 Rear views of 3070 Series 3 and 79000 systems
307X Series 3 Testhead with Support Bay
SYS_ID2.WPG
E1135B/C PDU (Main)
E1135B/C PDU (Main)
E1135B/C PDU (Branch)
(Single-phase options w/phase voltage
less than 250 volts)
View with rear
door open
317X Series 3 Testhead
Port1
Port0 Port2
Port3
In
0ut
Port1
Port0
Port3
Port2
In0ut
Port2
Port3
E1135B or E1135C PDU (Main)
79000 Testhead
Mains
Disconnect
Mains
Disconnect
Mains
Disconnect
Port3
Port2
In0ut
E1135B or E1135C PDU (Main)
327X Series 3 Testhead
