Chapter 6: Site Preparation – Power Requirements: Power Requirements

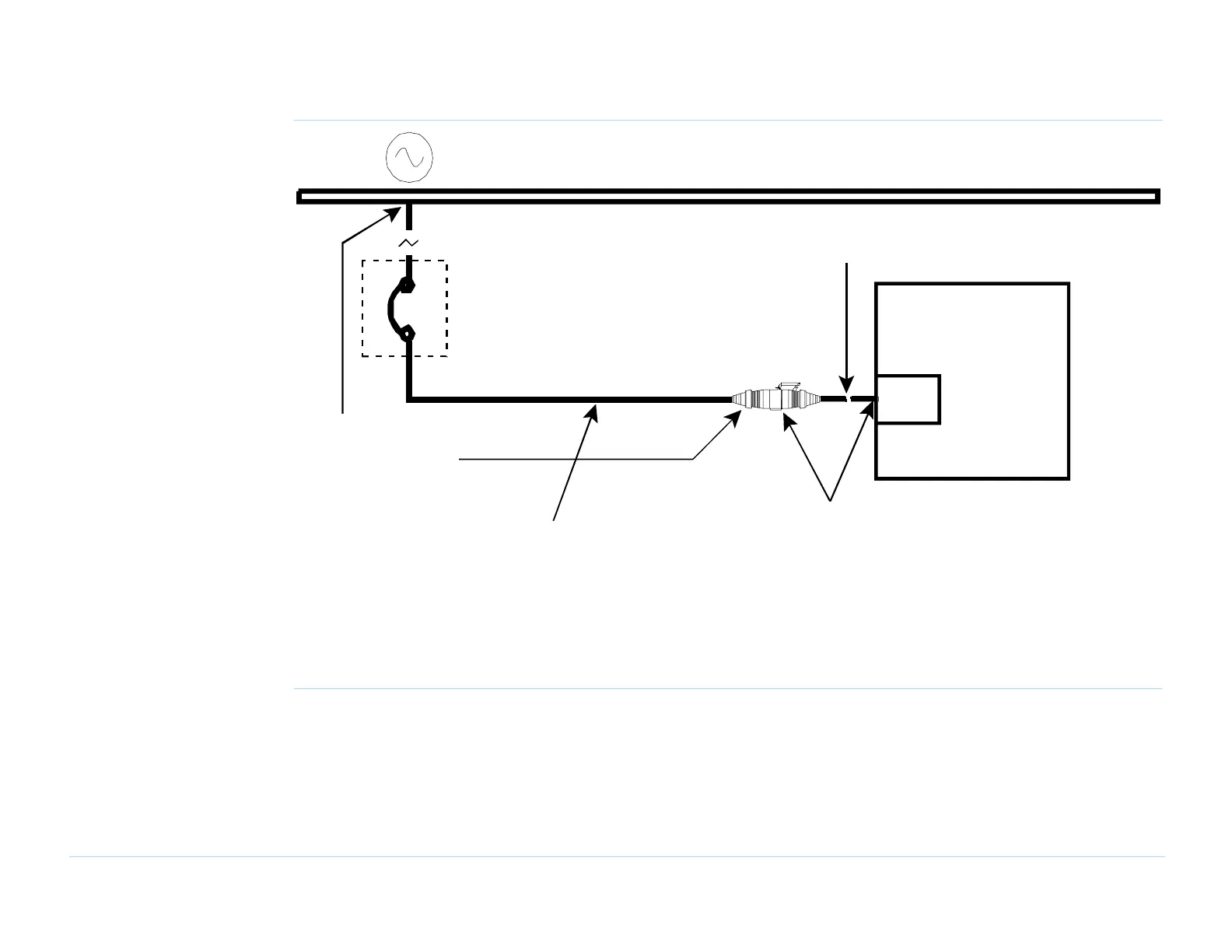

Figure 6-4 3070 Series 3 - International 3-phase systems
3070 / 79000 System
Power
Receptacle
30A / 3-Ph
Breaker or
3-30A Fuses
SO-Plug-International.wpg
PDU
2.5 m (8.2 ft) of 5x6mm
2
SO cord,
cord and male receptacle supplied by Agilent
(E1135-61610)
Power cord with
female receptacle
supplied by Agilent
Conductors and
service sized in
accordance with
local codes
Site ac voltage source
Voltage measured at the power
receptacle or PDU, with the
system on, should be
+6%, - 10% of nominal.
Any problems should be
reported to the local electrician
for corrective action.
