Chapter 4 Making Measurements 113
10 OUTPUT 722;"PRESET NORM" !DCV,NRDGS,l,AUTO, TARM AUTO, TRIG SYN
20 OUTPUT 722;"MEM FIFO" !ENABLE READING MEMORY, FIFO MODE
30 OUTPUT 722;"TRIG EXT" !TRIGGER EVENT = EXTERNAL
40 OUTPUT 722;"EXTOUT RCOMP,NEG" !READING COMPLETE EXTOUT, LOW-GOING TTL
45 !CONFIGURE EXTERNAL SCANNER
50 OUTPUT 709;"SADV EXTIN" !ADVANCE SCANNER ON MULTIMETER'S EXTOUT SIGNAL
60 OUTPUT 709;"CHCLOSED EXT" !OUTPUT LOW-GOING PULSE AFTER EACH CLOSURE
70 OUTPUT 709;"SCAN 201- 206" !SCAN CHANNELS 01- 06 ON SCANNER IN SLOT 200
75 !AND ADVANCE TO CHANNEL 01, STARTING THE SCAN
80 END
Burst Complete When specified, the burst complete event (BCOMP event) produces a 1 µs
pulse following completion of a group of readings. The number of readings
in a group is specified by the NRDGS or SWEEP command. The BCOMP
event can be used to synchronize an external scanner to the multimeter when
making multiple readings per scanner channel. The following program is
similar to the preceding program except that it uses the BCOMP event and
makes 15 readings on each scanner channel. Connections for this example
are shown in Figure 21.
10 OUTPUT 722;"PRESET NORM" !DCV, NRDGS 1,AUTO, TARM AUTO, TRIG SYN
20 OUTPUT 722;"MEM FIFO" !ENABLE READING MEMORY, FIFO MODE
30 OUTPUT 722;"TRlG EXT" !TRIGGER EVENT = EXTERNAL
40 OUTPUT 722;"EXTOUT BCOMP, NEG"!BURST COMPLETE EVENT, LOW-GOING TTL
50 OUTPUT 722;"NRDGS 15, AUTO"!15 READINGS PER CHANNEL
55 !CONFIGURE EXTERNAL SCANNER
60 OUTPUT 709;"SADV EXTIN" !ADVANCE SCANNER ON MULTIMETER'S EXTOUT SIGNAL
70 OUTPUT 709;"CHCLOSED EXT" !OUTPUT LOW-GOING PULSE AFTER EACH CLOSURE
80 OUTPUT 709;"SCAN 201- 206" !SCAN CHANNELS 01 - 06 ON SCANNER IN SLOT 200
85 !AND ADVANCE TO CHANNEL 01, STARTING THE SCAN
90 END

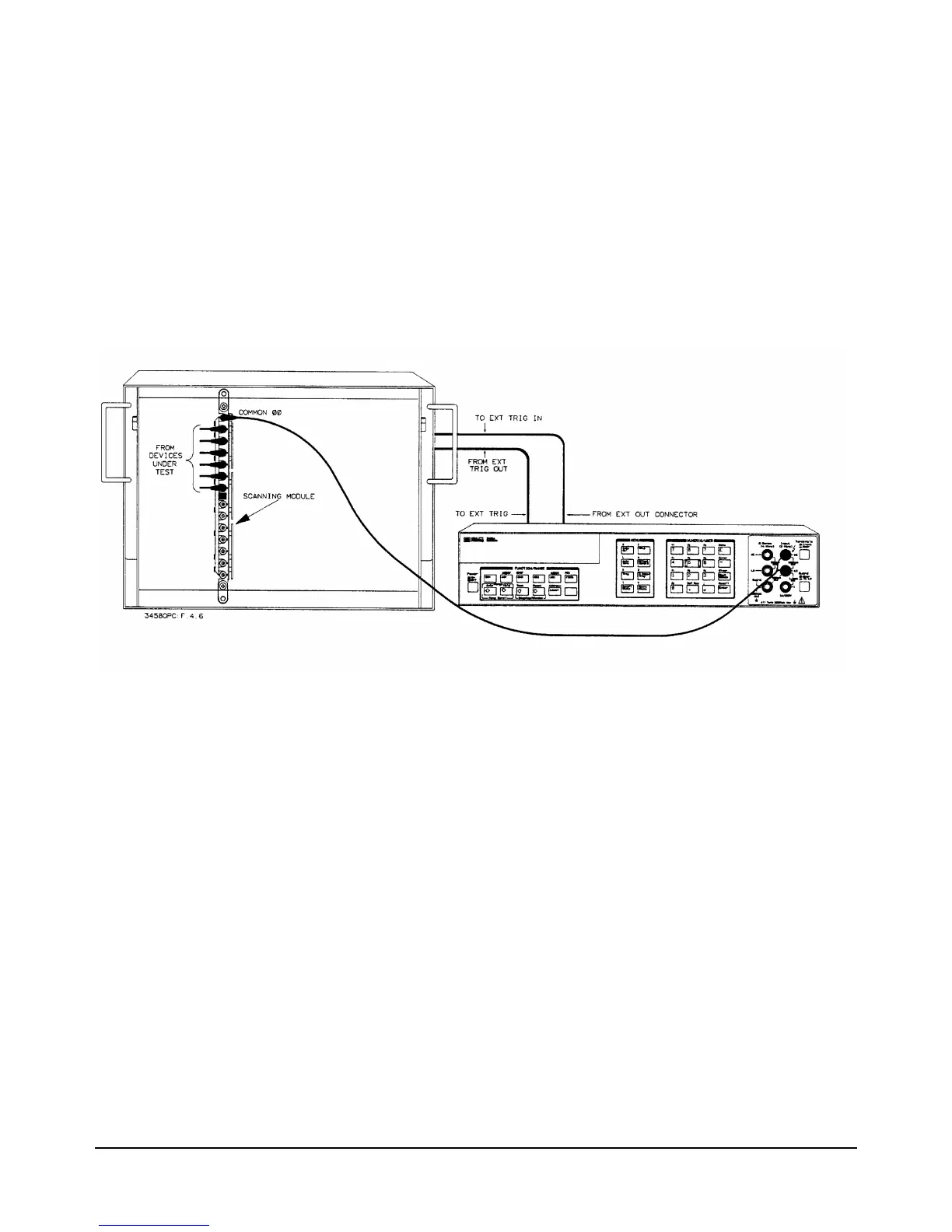

Figure 21. Using an external scanner
