84 Chapter 4 Making Measurements
50 OUTPUT 722;"NRDGS 10, AUTO" !10 READINGS/TRIGGER, AUTO SAMPLE EVENT
60 OUTPUT 722;"TRIG SGL" !TRIGGER READINGS
70 ENTER 722;Rdgs(*) !ENTER READINGS
80 PRINT Rdgs(*) !DISPLAY READINGS
90 END
Multiple Trigger
Arming
The second parameter of the TARM command allows you to specify multiple
trigger arming. When multiple trigger arming is specified, a single
occurrence of the trigger arm event arms the multimeter the specified number
of times. (The trigger arm event must be SGL for multiple arming.) This

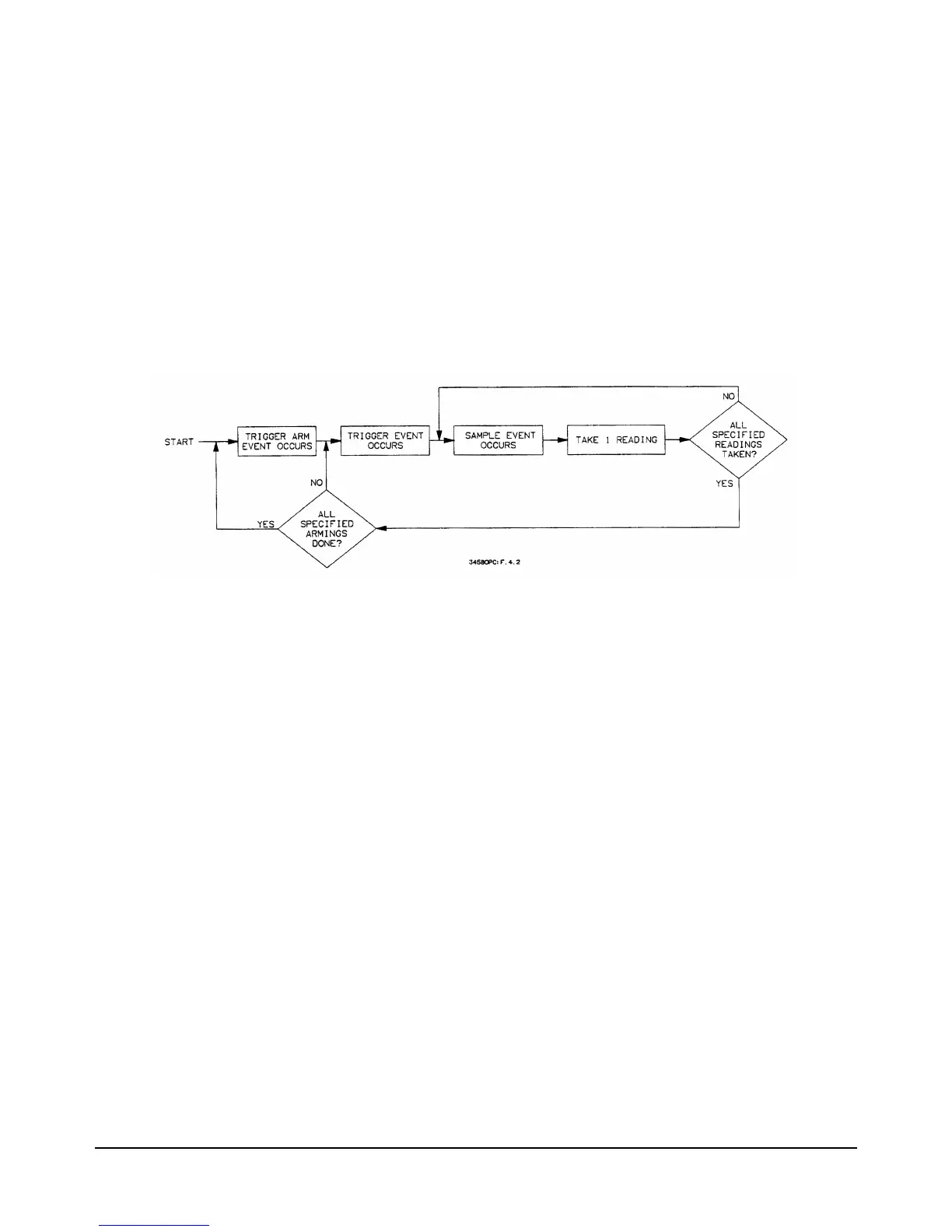

causes the multimeter to make multiple groups of readings as shown in Figure
17.
In the following program, the NRDGS command selects 10 readings per
trigger event. The second parameter of the TARM command specifies 5
armings. This program stores 5 groups of ten readings for a total of 50
readings.
10 OPTION BASE 1 !COMPUTER ARRAY NUMBERING STARTS AT 1
20 DIM Rdgs(50) !DIMENSION ARRAY FOR 50 READINGS
30 OUTPUT 722;"PRESET NORM" !TARM AUTO, TRIG SYN, DCV AUTORANGE
40 OUTPUT 722;"TARM HOLD" !HOLD TRIGGER ARM EVENT
50 OUTPUT 722;"TRIG AUTO" !AUTO TRIGGER EVENT
60 OUTPUT 722;"INBUF ON" !ENABLE INPUT BUFFER
70 OUTPUT 722;"NRDGS 10,AUTO" !10 READINGS/TRlGGER, AUTO SAMPLE EVENT
80 OUTPUT 722;"TARM SGL,5" !ARM TRIGGERING 5 TIMES
90 ENTER 722;Rdgs(*) !ENTER READINGS
100 PRINT Rdgs(*) !PRINT READINGS
110 END
Making Synchronous
Readings
You can synchronize the multimeter to the controller by setting the trigger
arm, trigger, and/or sample event to synchronous (SYN). The synchronous
event occurs whenever the multimeter's output buffer is empty, reading
memory is off or empty, and the controller requests data. This means that
measurements are made whenever the controller wants them. This is a very
important feature for remote operation, especially when the multimeter is in
the high-speed mode.
In the high-speed mode, the synchronous event ensures that the controller is
ready to accept readings and will not slow the reading rate. Refer to
Figure 17. Multiple trigger arming
