Instrument Automation
Using clock time events
176

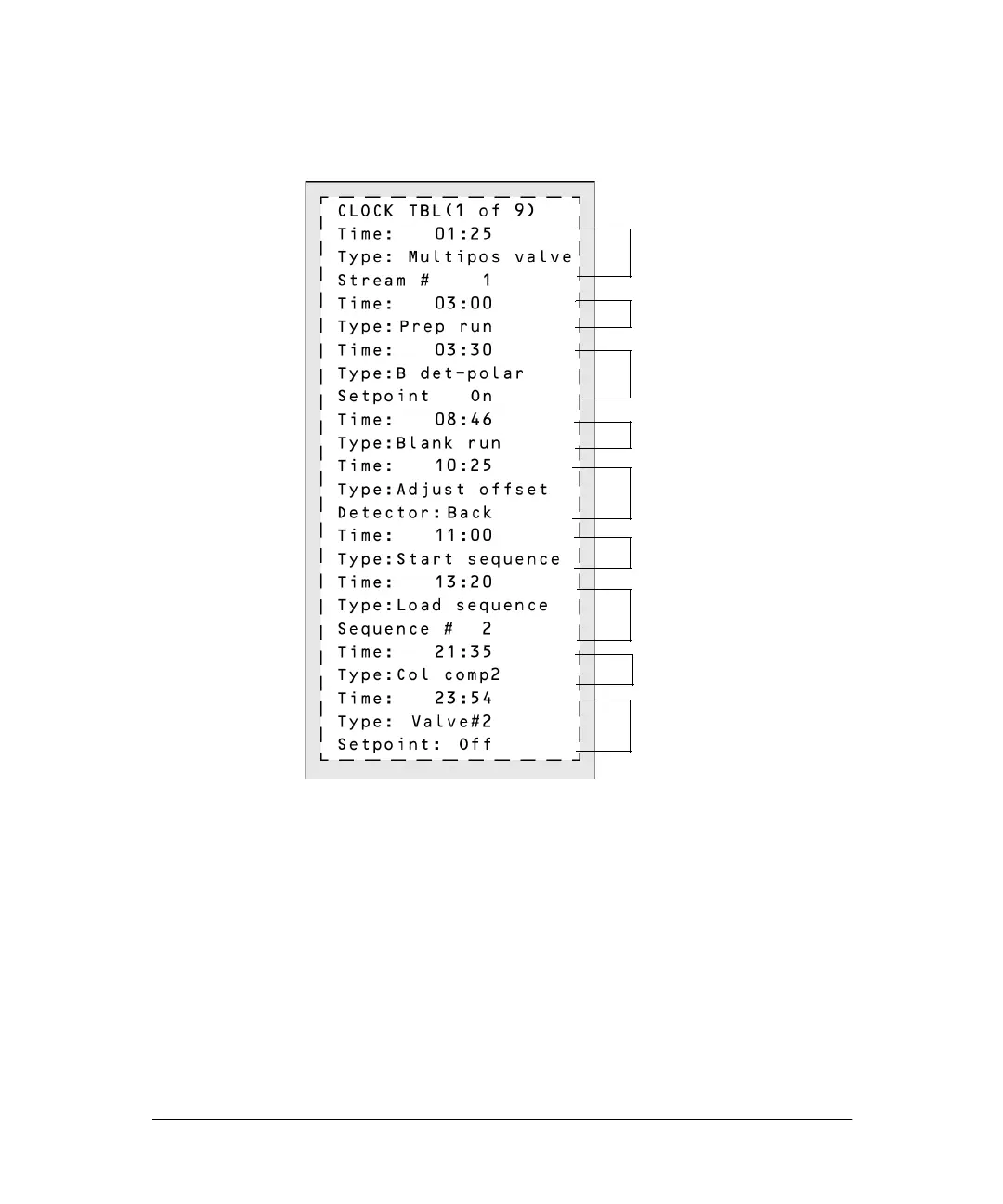

Figure 28 A clock table example
Note: This is not a “realistic” clock table. It is intended to show the
variety of events that can be programmed and to demonstrate that the
size of any entry depends on the parameters required for that event
Up to 25 clock time events can be programmed.
Event 1 of 9
Event 2 of 9
Event 3 of 9
Event 4 of 9
Event 5 of 9
Event 6 of 9
Event 7 of 9
Event 8 of 9
Event 9 of 9
The clock table will resume at 01:25 the next
morning with the multiposition valve event.
