116 Agilent 1290 Infinity Binary Pump User Manual
9 Maintenance
Replacing the Shutoff Valve Panel
Replacing the Shutoff Valve Panel
When If a shutoff valve is damaged or the panel needs to be removed for other repair procedures.
Parts required # p/n Description
1 5067-4124 Shutoff valve
1 G4220-40004 Shutoff valve panel
2 G4220-60035 Tubing kit 140 mm SSV to shutoff valve or degassing unit (2 tubes)
Preparations In order to avoid leaks, remove tubings from the solvent bottles.

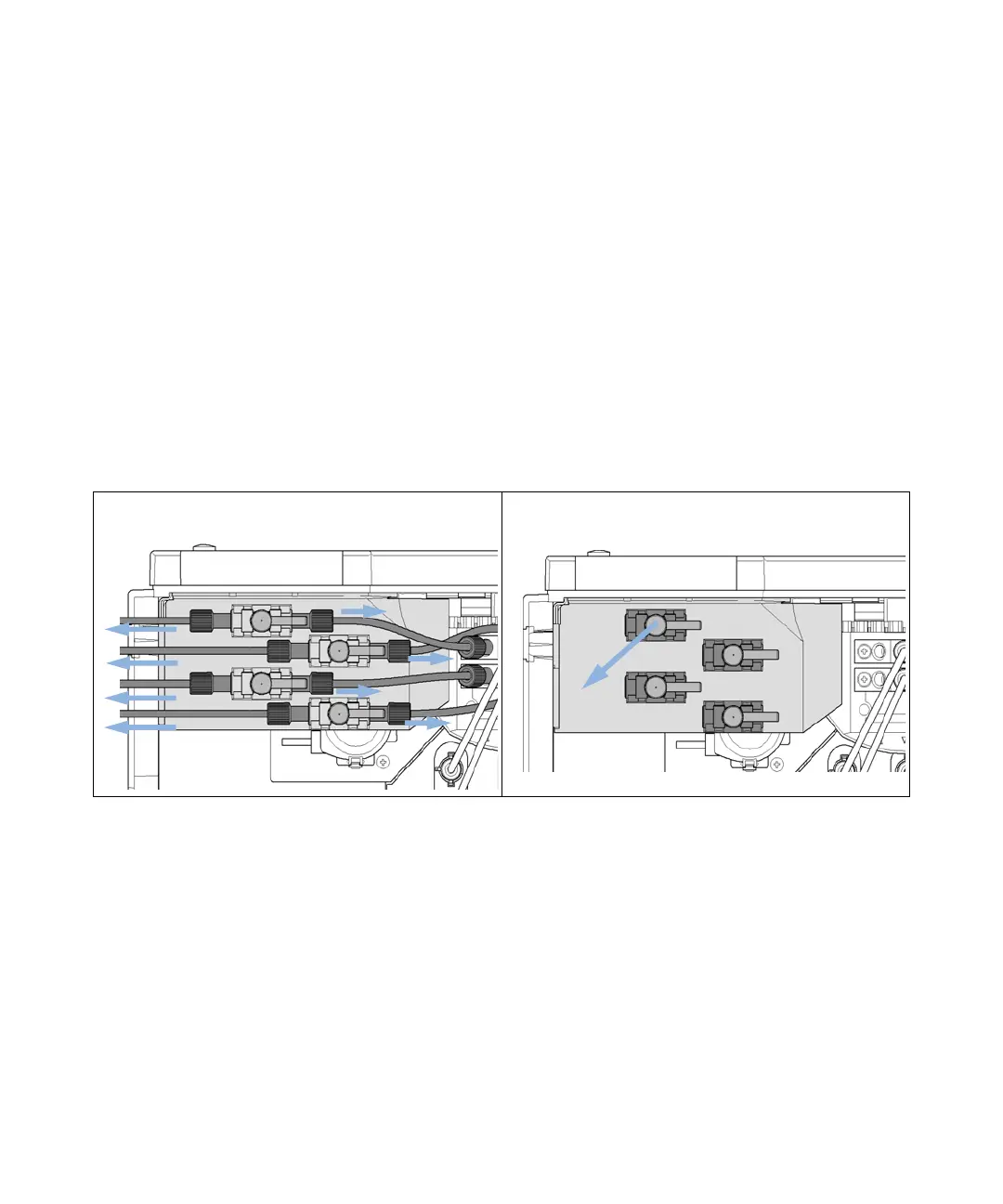

1 Unscrew tubing connections between shutoff valves,
solvent bottles and the solvent selection valve.
2 If a single valve shall be replaced, it can be pulled to the
front for removing it from its mounting
