Agilent 1290 Infinity Binary Pump User Manual 31

Installing the Module

Removing the Transport Foam

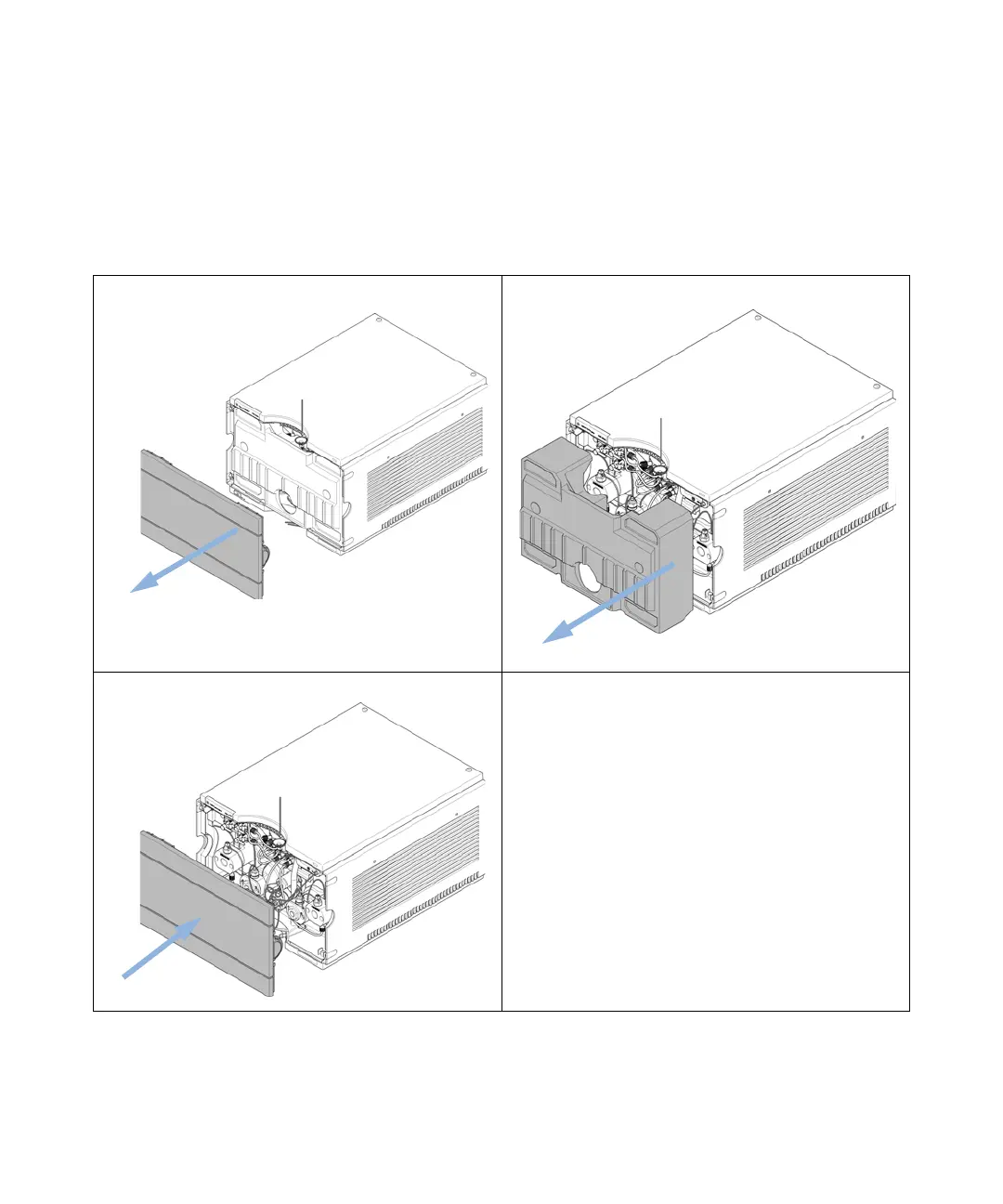

1 Open the front cover of the module. 2 Carfully remove the protective foam.

3 Close the front cover.
