184 Agilent 1290 Infinity Binary Pump User Manual

10 Parts and Materials for Maintenance

Leak Parts

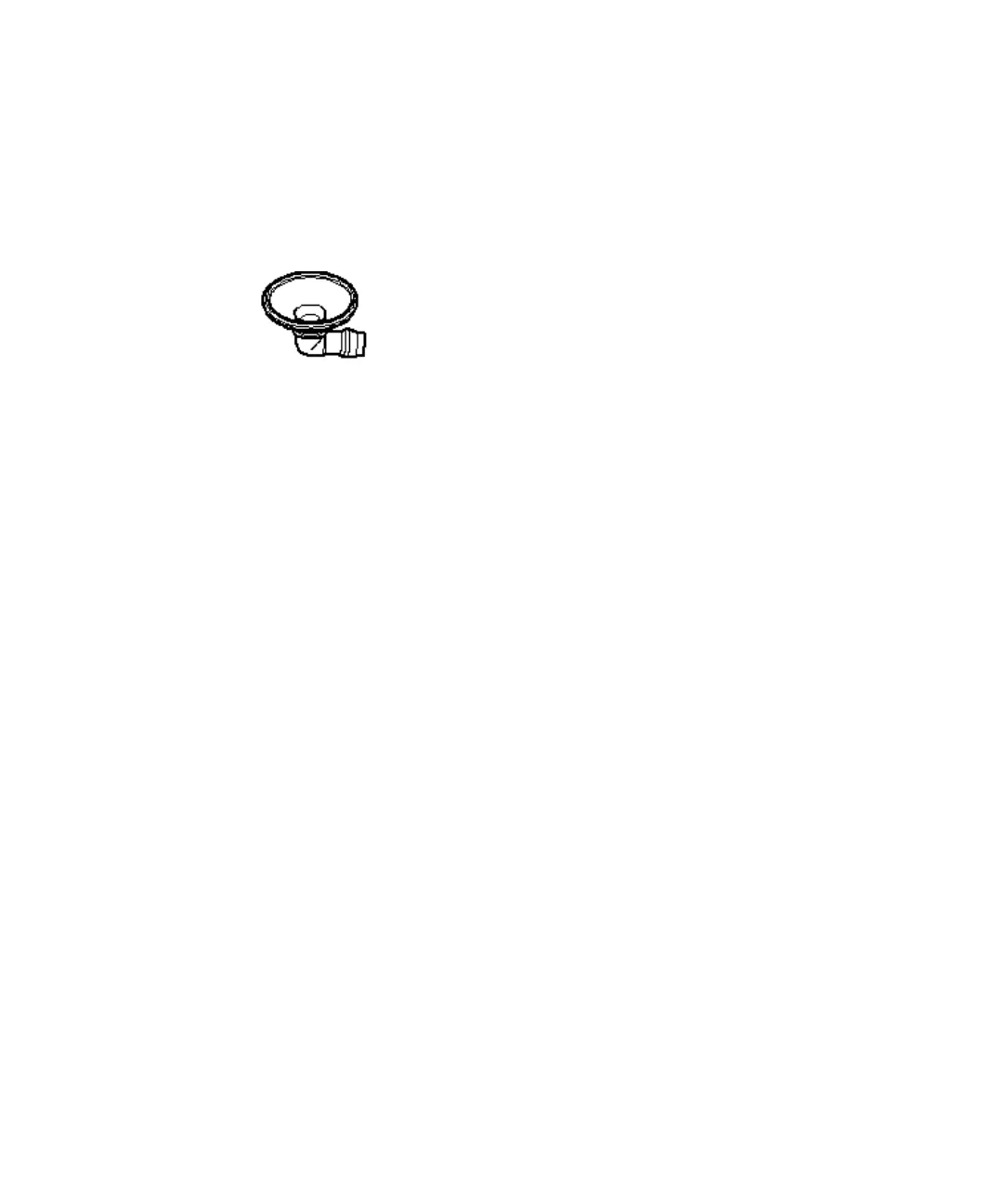

Figure 26 Leak funnel

Fuses

p/n Description

5041-8388 Leak funnel

p/n Description

2110-1004 (2x) Fuse 10 A t
