10 Parts and Materials for Maintenance
Others
Others
The 1290 Infinity pump service kit (5067-4699) includes pump head alignment
tool and items 1 – 4 .

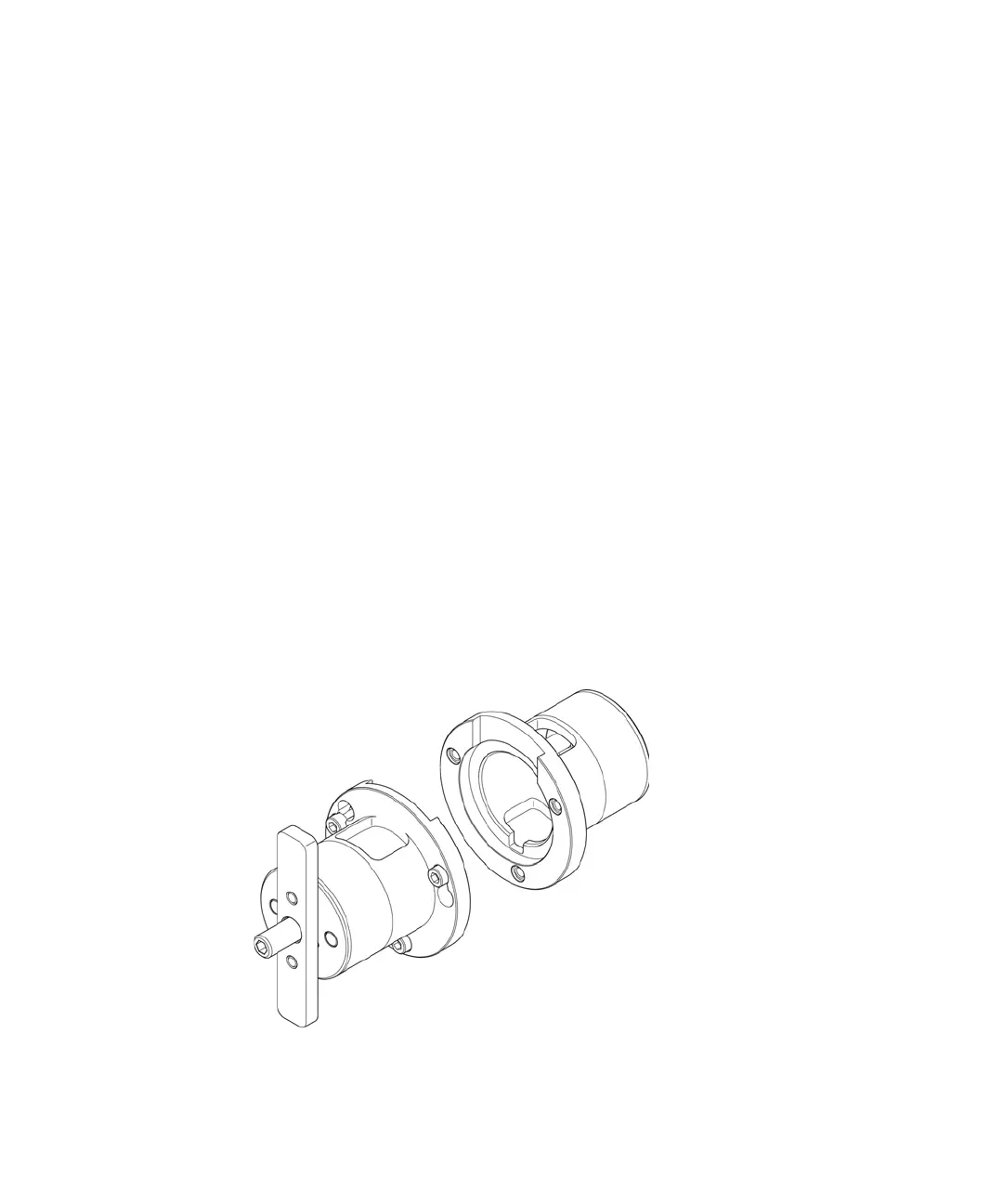

Figure 27 Pump head alignment tool
Item p/n Description
5067-4699 1290 Infinity pump service kit
1 G4220-20012 Torque wrench 2 – 25 Nm
2 G4220-20013 4 mm hex bit
3 G4220-20014 2.5 mm Hex Bit
4 G4220-20015 Adapter ¼ in square to hex
G4220-44000 Protective Foam
5023-0285 Replacement kit for 1290 Infinity pump head alignment tool
(piston/handle)
G4203-68708 HPLC System Tool Kit
