130 Agilent 1290 Infinity Binary Pump User Manual
9 Maintenance
Replacing the Seal Wash Pump
Replacing the Seal Wash Pump
When In case of wear of the seal wash pump
Parts required p/n Description
5042-8507 Peristaltic Pump for Seal Wash
Preparations Remove the shutoff valve panel (“Replacing the Shutoff Valve Panel” on page 116) and flow
connections from and to the seal wash pump

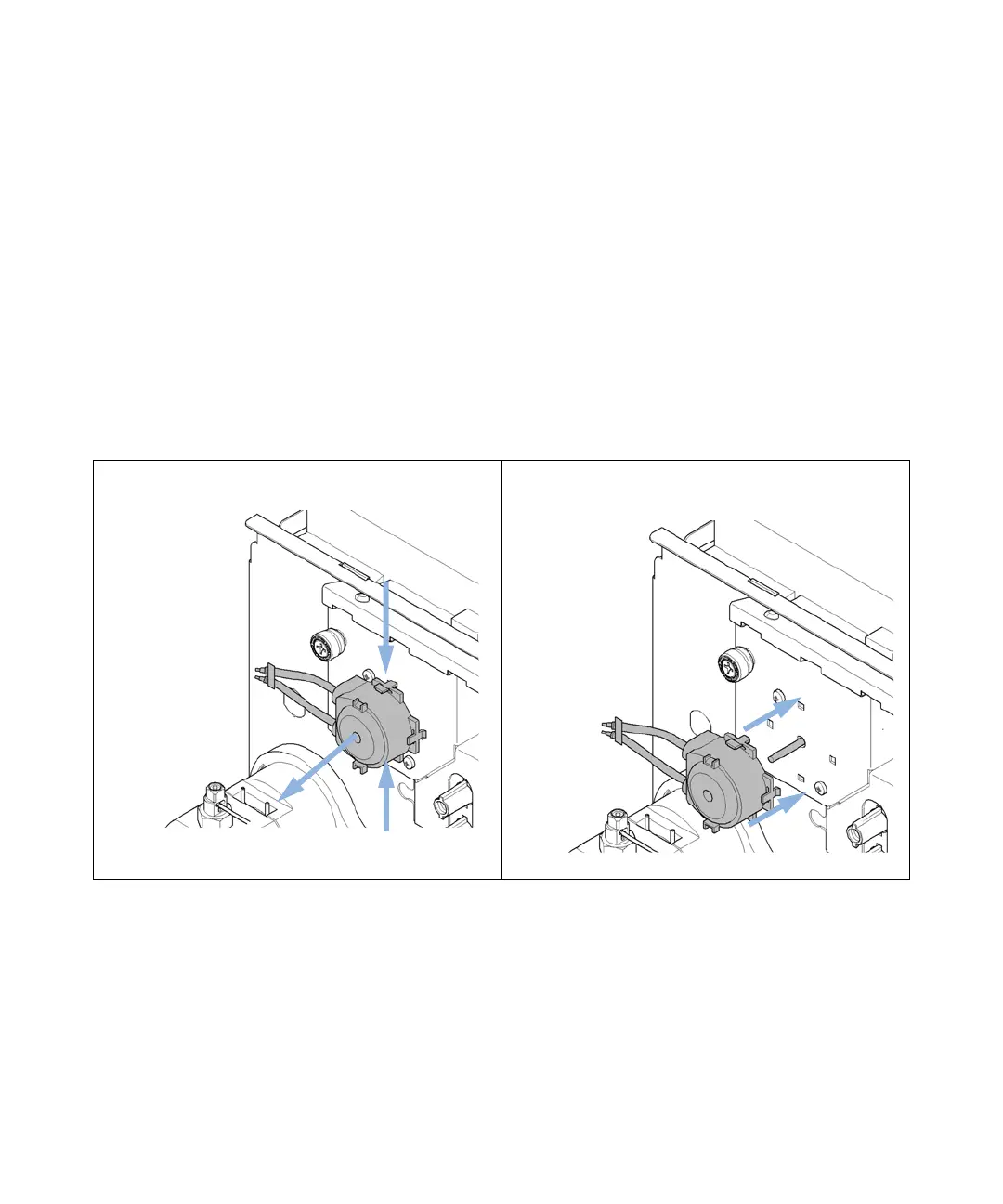

1 For removing the seal wash pump, press the clips (1) and
pull the pump to the front (2).
2 Insert the pump clips to the holes in the binary pump
housing.
