Installing the Valve Rail Kit
Installing the Valve Rail Kit

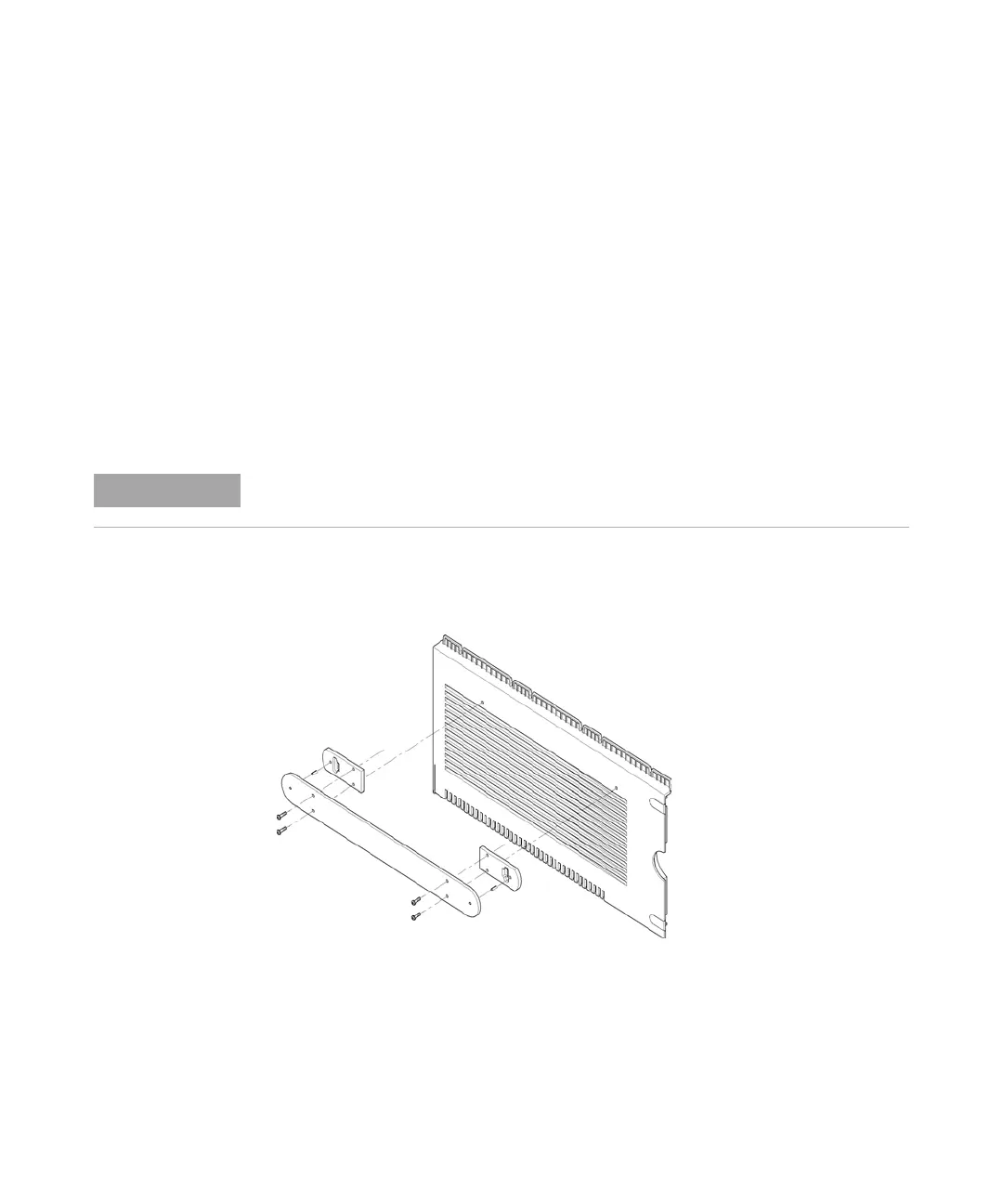

1 The valve rail is fixed to the pump cover by 4 screws. The position of the
lower screws is marked on the module cover. First tighten these screws, and
then tighten the upper screws.
When This rail is needed for the installation of external valves
Tools required Description
Pozidrive screwdriver #1
Parts required # p/n Description
1 5067-4634 Valve Rail Kit
NOTE
The rail can be installed on the left or right side of the pump. This procedure describes the
installation on the left side and applies similarly to the right side.
