Agilent 1290 Infinity Binary Pump User Manual 171

Parts and Materials for Maintenance

Seal Wash Option

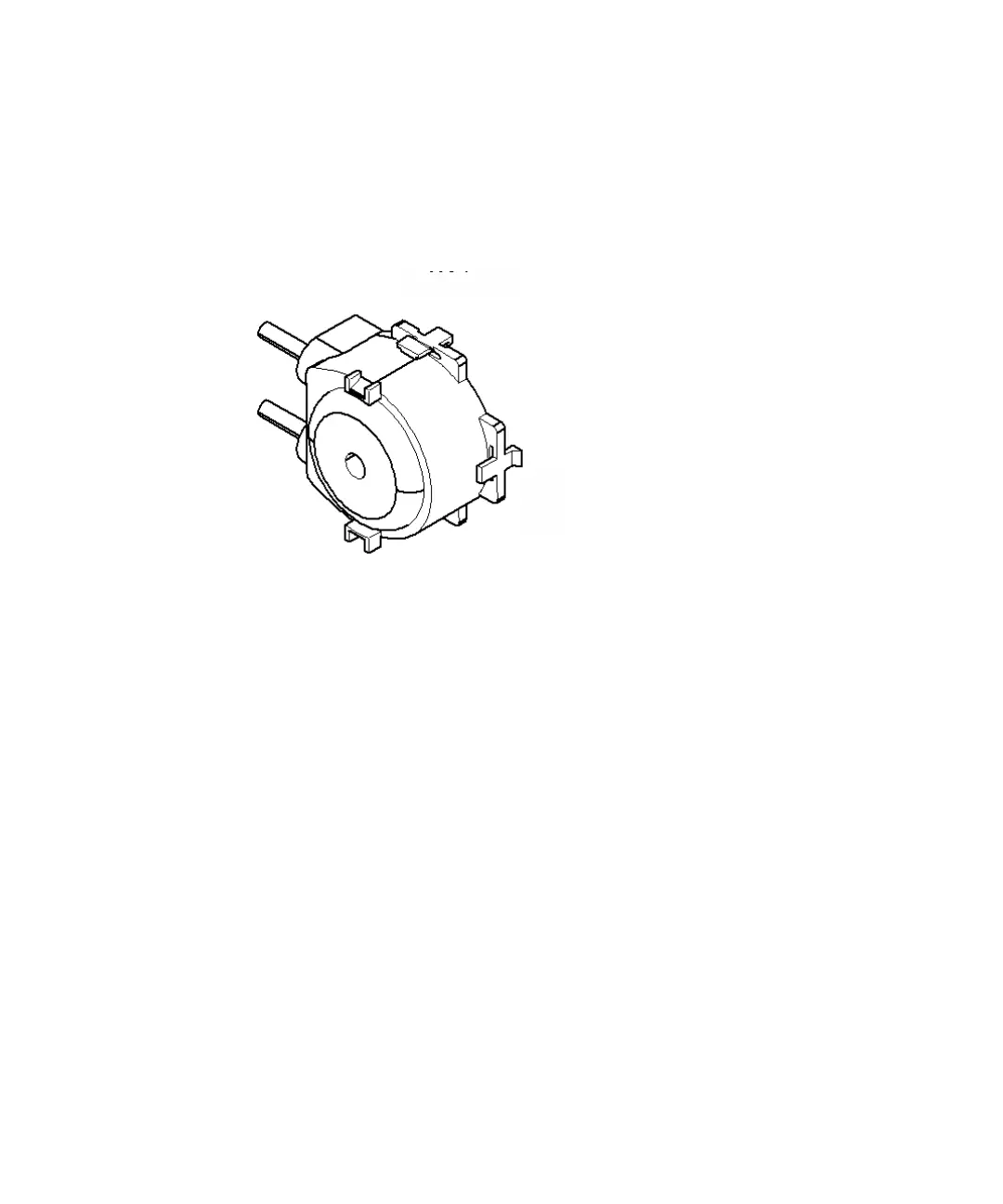

Figure 18 Seal wash pump

p/n Description

5042-8507 Seal wash pump cartridge

5065-9978 Tubing, 1 mm i.d., 3 mm o.d., silicone, 5 m, for seal wash option
