Configure and Start Up the Kinetix 300 Drive Chapter 6

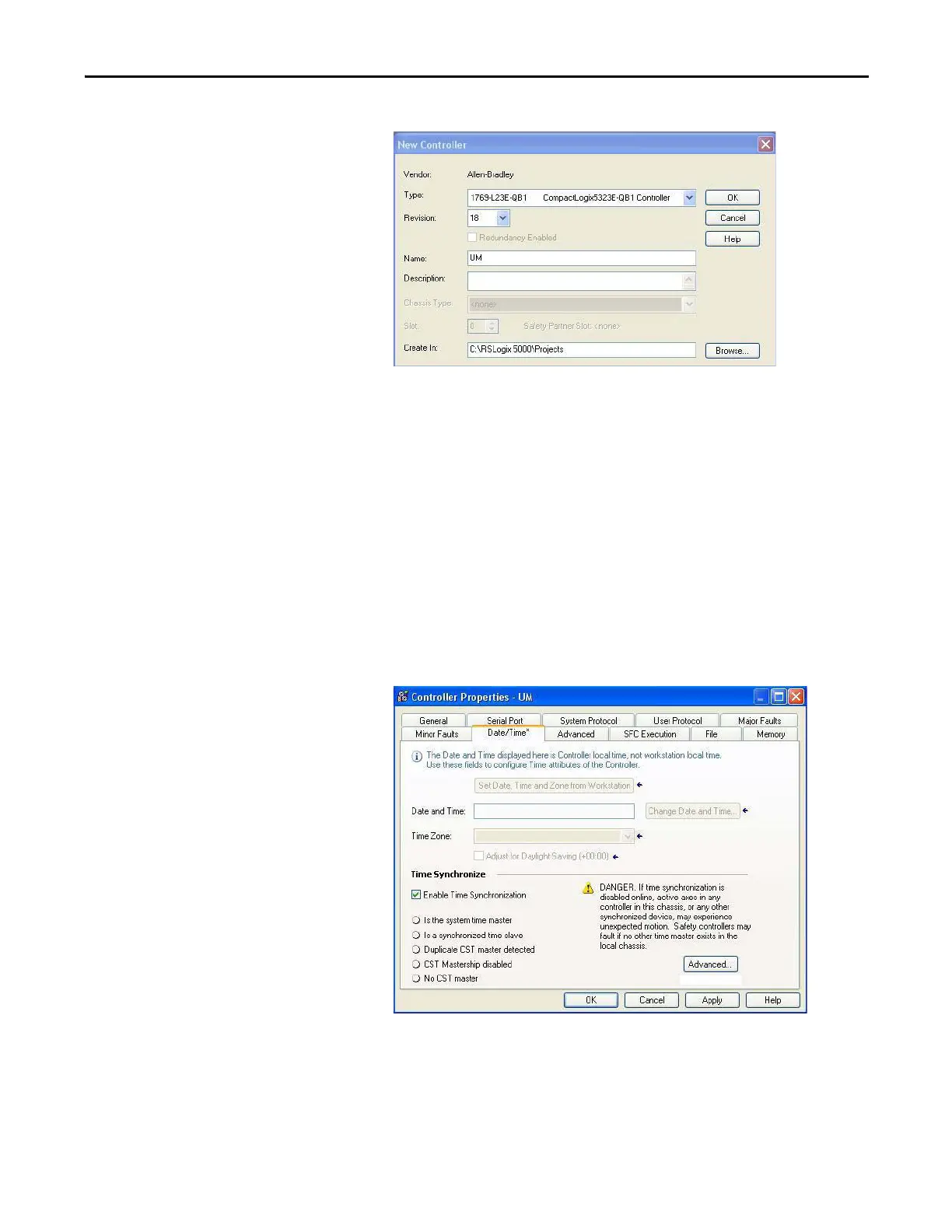

The New Controller dialog box opens.
3. Configure the new controller.
a. From the Type pull-down menu, choose your controller type.
In this example, the CompactLogix L23E-QB1 controller is chosen.
b. Enter your RSLogix 5000 software version.
c. From the Chassis Type pull-down menu, choose your chassis.
This step applies only for ControlLogix controllers.
d. Enter the slot where your module resides (leftmost slot = 0).
This step applies only for ControlLogix controllers.
e. Name the file.
4. Click OK.
5. From the Edit menu, choose Controller Properties.
The Controller Properties dialog box opens.
