Rockwell Automation Publication 2097-UM001D-EN-P - November 2012 213
MicroLogix Explicit Messaging Appendix D
REAL Data Type Examples
In this example, the instance decimal is ID tag 183 (phase current).

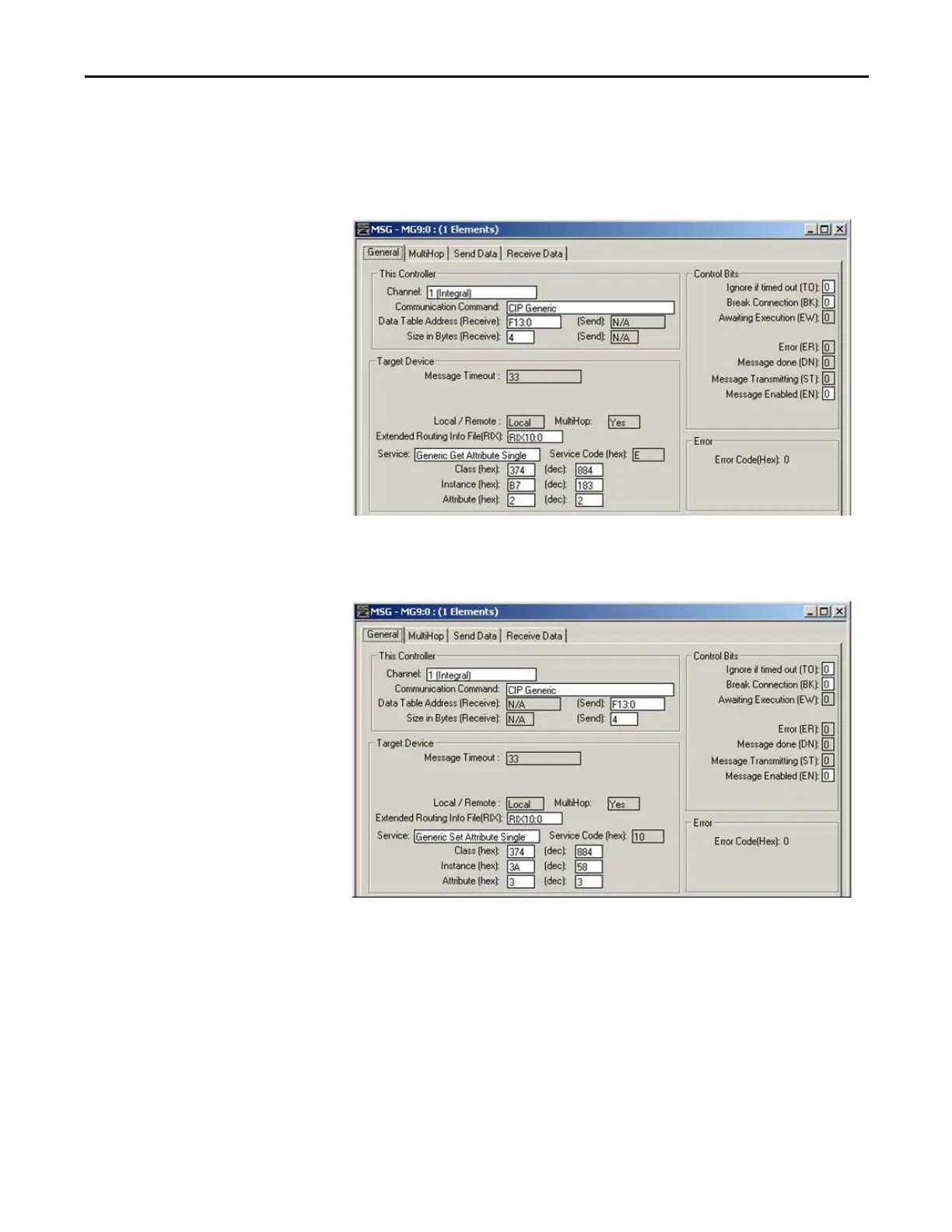

Figure 103 - Reading REAL from Volatile Memory
In this example, the instance decimal is ID tag 58 (zero speed window).
Figure 104 - Writing REAL into Nonvolatile Memory
