Allen-Bradley PanelView Plus 7 User Manual

118 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 5 Install and Replace Components

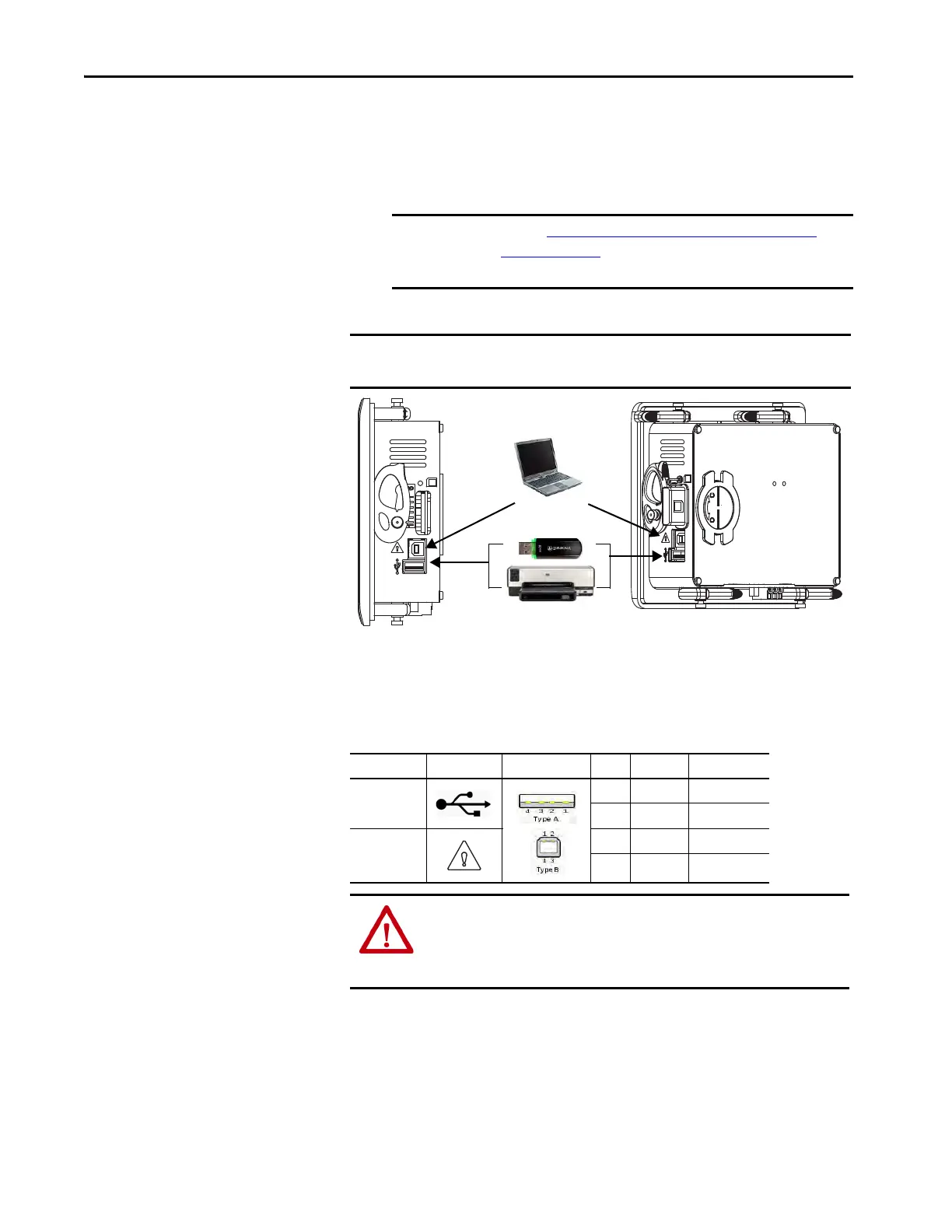

Connect to USB Ports
Each terminal has one USB 2.0 (type A) host connection and one USB 2.0
(type B) device connection:
• The USB host connection supports removable USB drives and a USB
printer.
• The USB device connection supports a connection to a host computer.
Icons identify the USB host connections. The USB host connection supports
0.5A at 5V DC. Connected USB devices must not exceed this power load.
IMPORTANT Refer to Required Circuit Port Parameters for USB Peripheral
Devices on page 24 for information on how to use the USB host
ports and USB peripheral devices in hazardous locations.
IMPORTANT The USB host and device connections are intended for temporary use. Do
not use the USB host and device connections for runtime operations.
Table 31 - USB Connector Pinout
USB Port Icon USB Connector Pin Signal Description
Host 1 VCC +5V
2 D- Data -
Device 3 D+ Data +
4GND Ground
WARNING: USB devices that are not powered by the USB port must be
within the same enclosure as the terminal. The USB devices must be
connected to a ground system common with the terminal or used with a
USB hub that provides galvanic isolation.
USB Host Connection
USB Device
Connection

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
