Allen-Bradley PanelView Plus 7 User Manual

64 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 3 Configure Terminal Settings

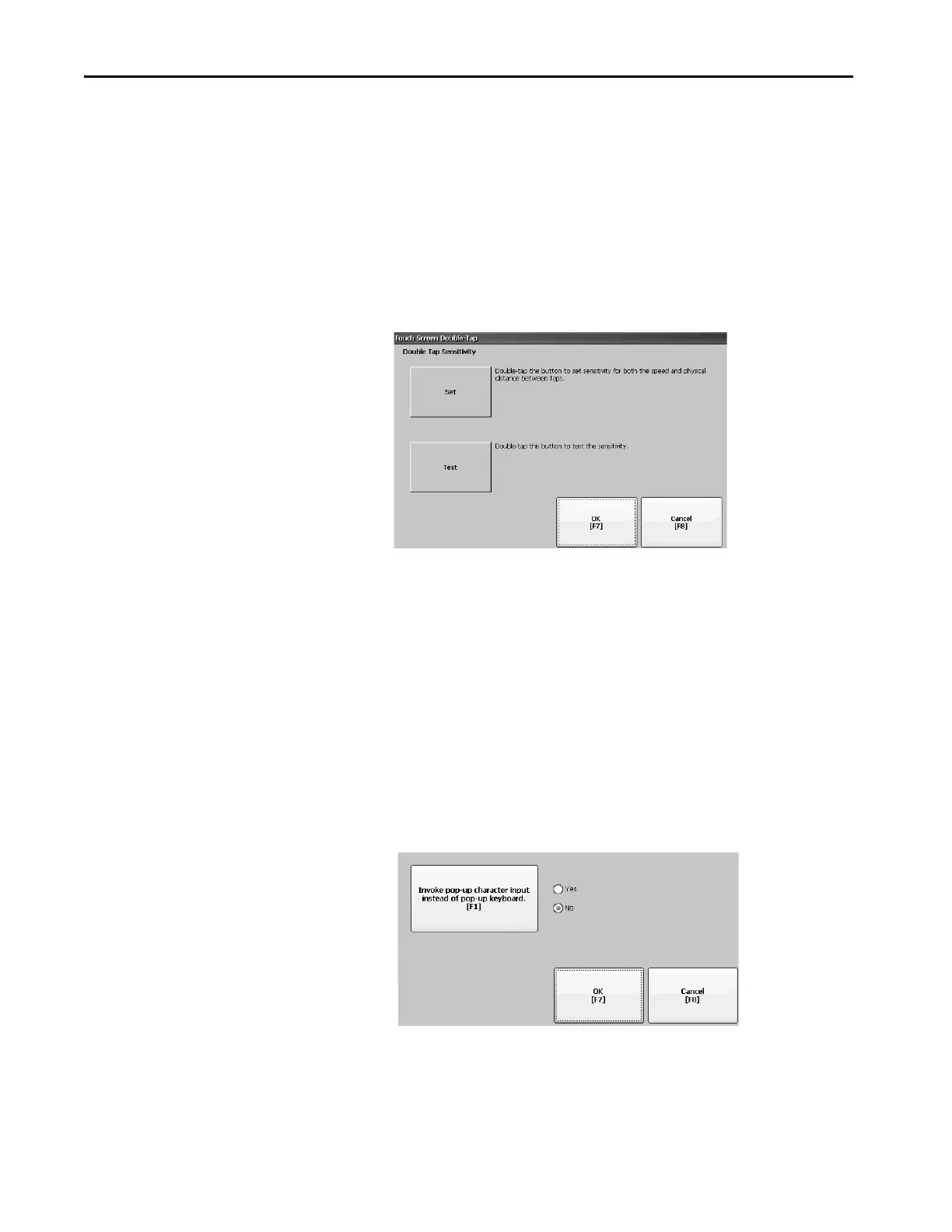

Set the Double-tap Sensitivity for a Touch Screen
You can set and test the sensitivity of both speed and physical distance between
touch screen presses.
1. Press Terminal Settings, then choose Input Devices>Touch
Screen>Double Tap Sensitivity.
2. To set the sensitivity of touch screen presses, double-tap Set.
3. To test the sensitivity of touch screen presses, double-tap Test.
The Test button reverses its foreground and background colors.
4. Press OK when done.
Change the Popup for String Entry
You can use a string popup for character input instead of the popup keyboard
or input panel.
1. Press Terminal Settings, then choose Input Devices>String Popup.
2. To select the preferred method for character input, press ‘Invoke pop-up
character input instead of pop-up keyboard’.
3. Press OK.
TIP The process is identical to set and test the sensitivity of mouse clicks. To
adjust the sensitivity of mouse clicks, press Terminal Settings, then choose
Input Devices>Mouse.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
