Chapter 3 Configure Terminal Settings
Configure Controller Address
To configure communication information for your application and controller,
use RSLinx Enterprise software.
To edit the device address of the controller, follow these steps.

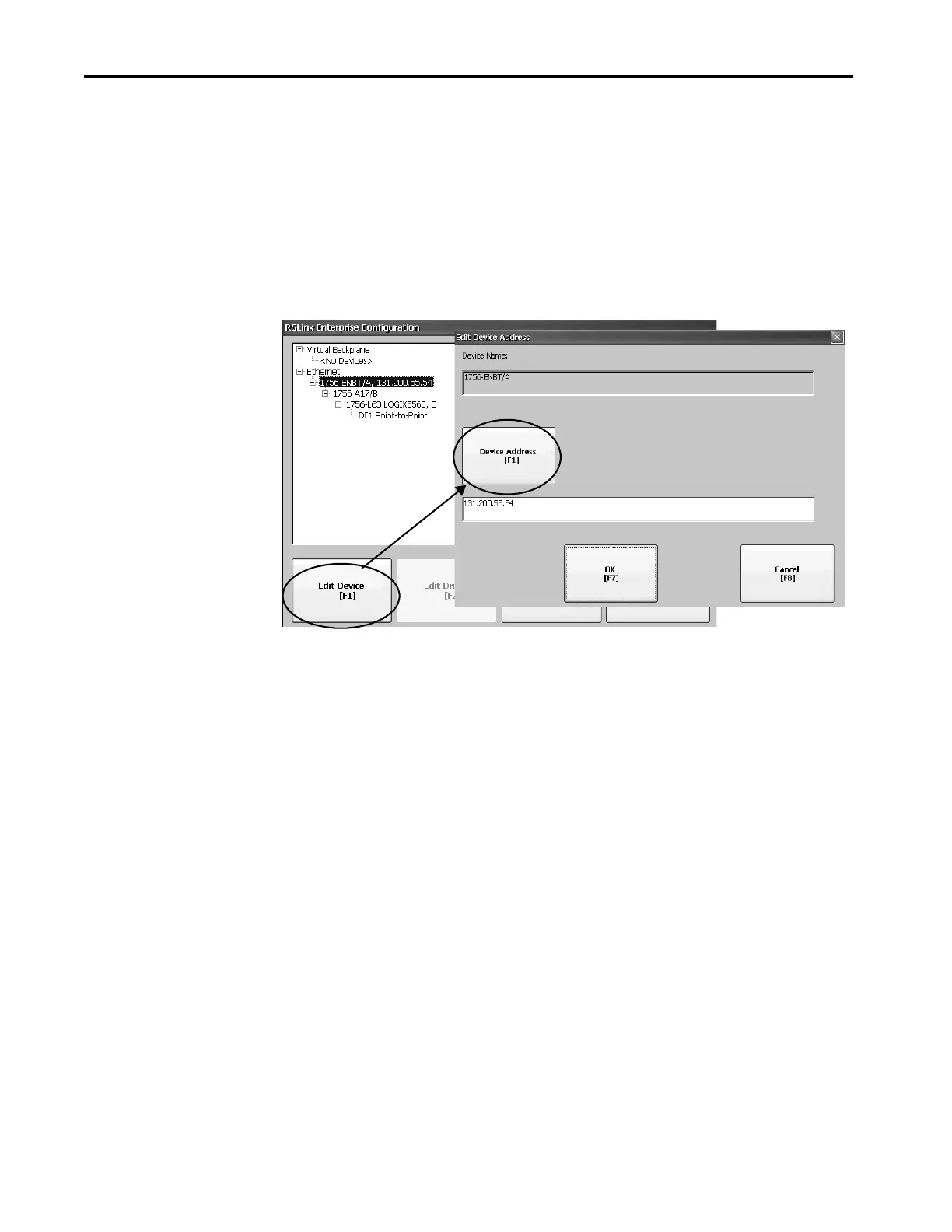

1. Press Terminal Settings, then choose Networks and
Communications>RSLinx Enterprise Communications.
2. Select the controller in the tree.
3. To view the device name and current address, press Edit Device.
4. To modify the address, press Device Address.
The input panel opens with the current address.
5. Enter the address in the input panel and press Enter.
6. Press OK.
Updates do not take effect until the terminal is restarted.
Configure Ethernet Settings
The terminal has a built-in Ethernet driver. You can modify the following
Ethernet information for your device:
• IP address of terminal on network, including link speed
• Device name that identifies terminal on network
• User name and password to access network resources
• Enable or disable either Ethernet port to configure for DLR, star, or
linear network topologies
TIP You can also configure communication information for your application
and controller by using FactoryTalk View Studio software.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
