Allen-Bradley PanelView Plus 7 User Manual

90 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 4 Windows Operating System

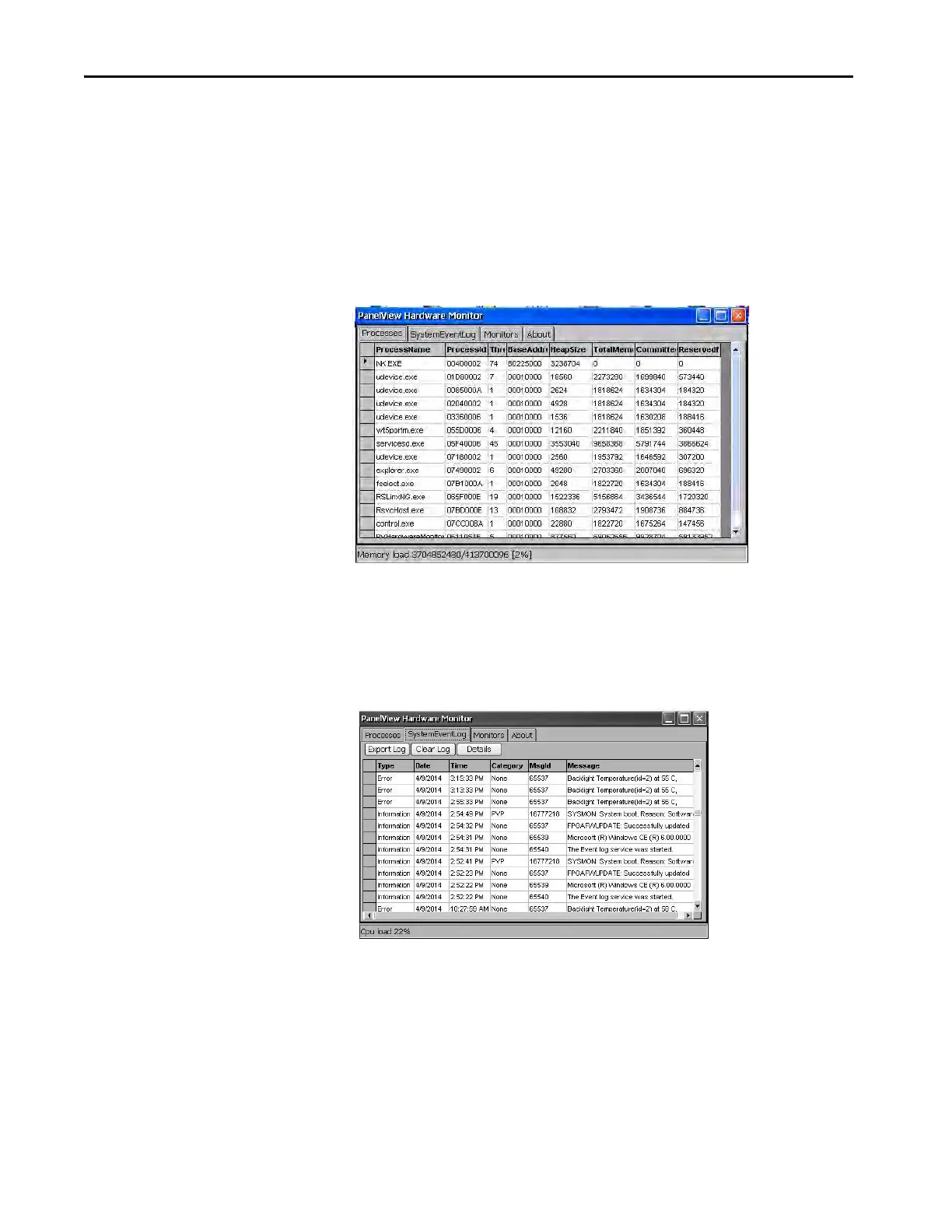

Hardware Monitor
The Hardware Monitor provides status and troubleshooting information for
the terminal. You can view running processes, system event log, battery
voltages, current temperature, CPU load, and memory load.
Processes
The Processes tab in the Hardware Monitor shows all processes running on the
terminal and memory usage of each process.
System Event Log
The System Event Log in the Hardware Monitor shows warnings, errors, and
events that the terminal logs.
The log provides a date and time stamp of each event and text that describes the
event. The maximum size of the log is 1 MB, approximately 4,000 records. If
the log exceeds 1 MB, the oldest 512K of information is removed. You can
perform the following operations on the log file:
• Press Export Log to export the log file to a CSV file (*.csv) in the
\Windows folder. The default file name is SystemLog.csv.
• To clear all events from the log, press Clear Log.
• To view more details on a selected event, press Details.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
