Allen-Bradley PanelView Plus 7 User Manual

52 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 3 Configure Terminal Settings

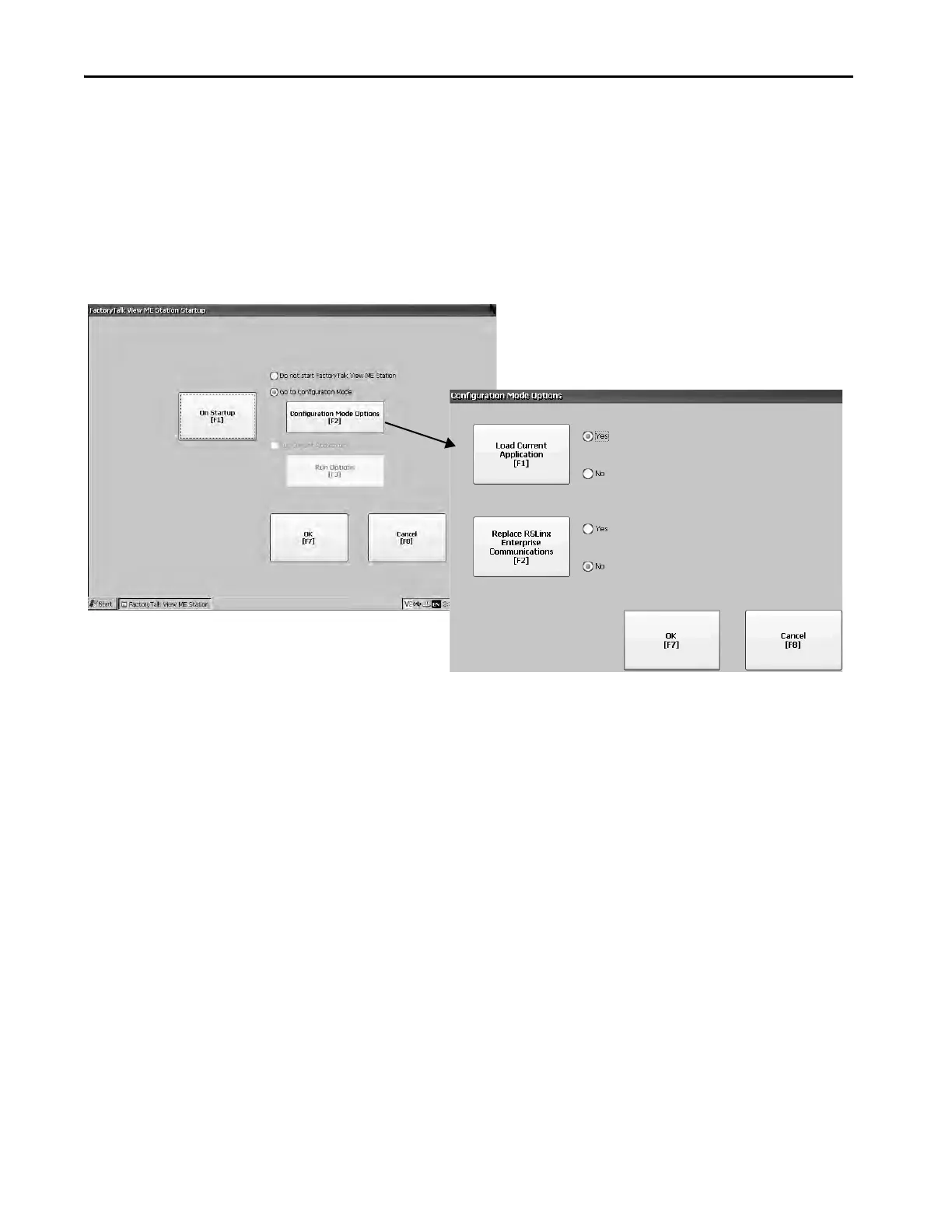

Enter Configuration Mode on Startup
Follow these steps to launch FactoryTalk View ME Station in Configuration
mode on startup.
1. Press Terminal Settings, then choose Startup Options.
2. To select Go to Configuration Mode, press On Startup.
3. To view or change optional settings, press Configuration Mode Options.
4. To specify whether you want to load the current application on startup,
press Load Current Application.
5. To specify what configuration settings are used when the loaded
application is run, press Replace RSLinx® Enterprise Communications:
• To use the RSLinx communication settings in the terminal, select
No.
• To replace the terminal settings with the communication settings in
the application, select Yes. Any changes to RSLinx device addresses or
driver properties on the terminal are lost.
6. To return to the previous dialog box, press OK.
7. To return to terminal settings, press OK.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
