96 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 4 Windows Operating System

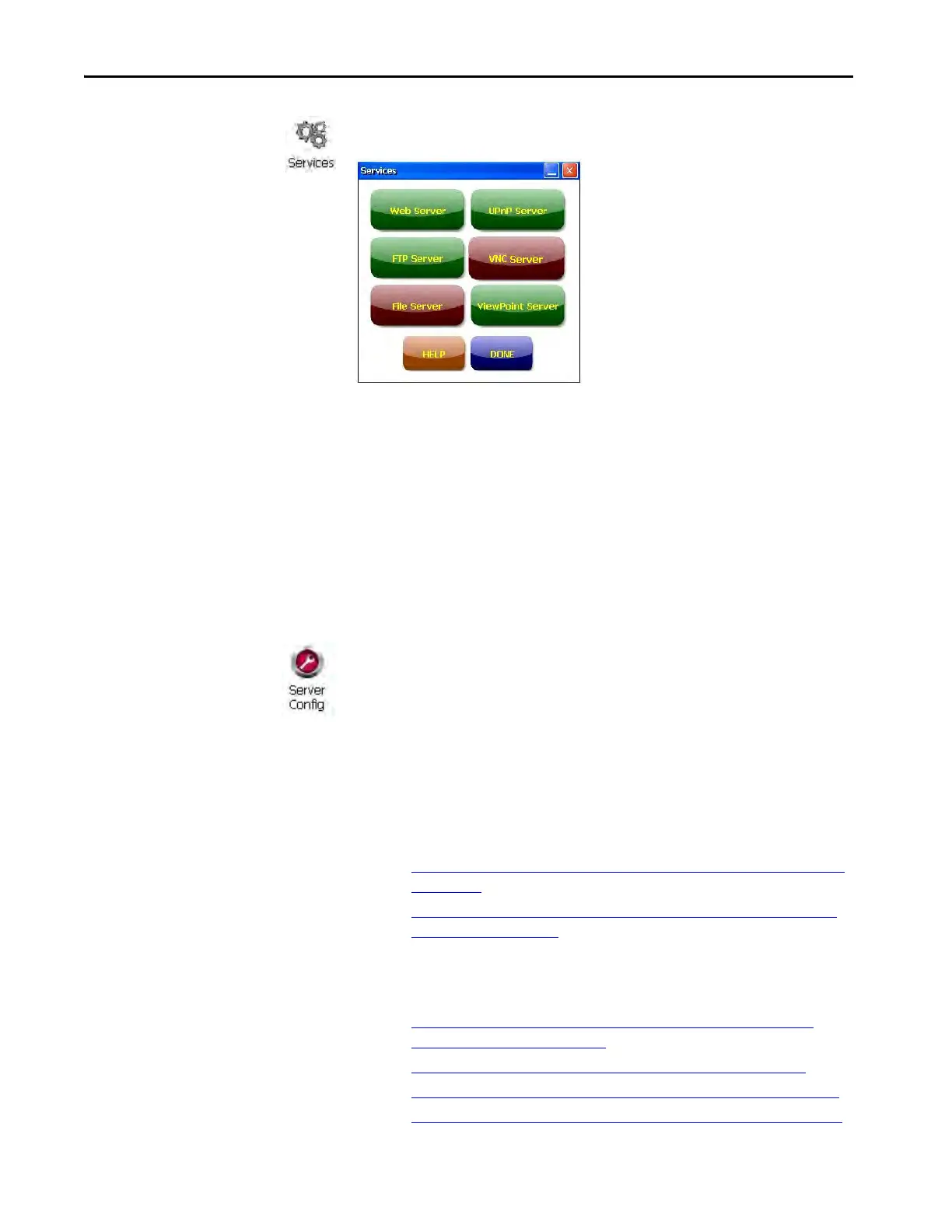

Services
The Services application shows servers the PanelView Plus 7 Standard terminal
supports. You can enable (start) or disable (stop) each server.
The buttons are color-coded:
• Green indicates that the server is running and automatically started at
system startup.
• Red indicates that the server is not running.
• Gray indicates that the server is not available on the terminal.
To enable or disable a server, press the corresponding button and the color
changes accordingly.
Network Server
Configuration
The Network Server Configuration application configures settings for VNC,
FTP, web, Kepware, and file server activities on an Ethernet network.
VNC Server Configuration
The terminal provides two VNC client viewers:
• Vncviewer.exe is in the /Windows folder on the terminal desktop. You
can deploy this viewer to a personal computer to connect to, view, and
control a PanelView Plus 7 terminal. See these sections for details:
– VNC Connection Requiring a Password for View-only Operations
on page 97
– VNC Connection with Separate Passwords for View and Control
Operations on page 98
• Another viewer on the terminal lets you establish a VNC connection to
another PanelView Plus 7 terminal. To access this viewer, click
Start>Programs>VNC Viewer. See these sections for details:
– Establish a VNC Connection Between a Local Terminal and a
Remote Terminal on page 100
– Close a VNC Connection to a Remote Terminal on page 102
– Make a New VNC Connection to a Remote Terminal on page 102
– Transfer Files Between a Local and a Remote Terminal on page 103
