Chapter 2 Install the PanelView Plus 7 Standard Terminal
Initial Startup

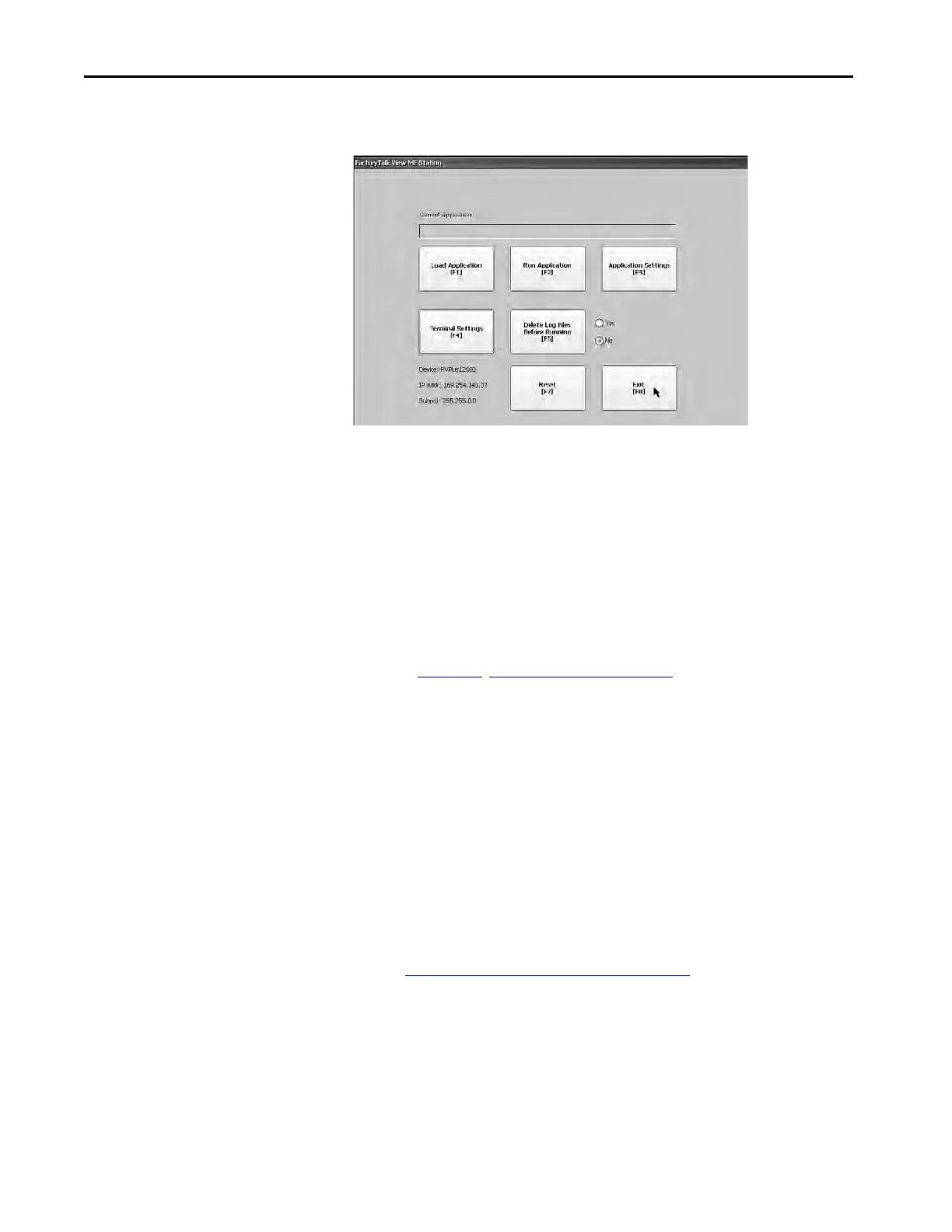

The first time that you start the system, the terminal goes through its start-up
sequence and launches FactoryTalk View ME Station in Configuration mode.
To change the action that occurs at startup, press Terminal Settings, then tap
Startup Options. You can configure one of these options:
• Launch a FactoryTalk View ME HMI application.
• Launch FactoryTalk View ME Station in Configuration mode (default).
• Launch the Windows desktop.
For more information on how to change the start-up option and desktop
access, see Chapter 3
, Configure Terminal Settings.
Reset the Terminal
There are several ways to restart the terminal without having to disconnect and
reapply power:
• From FactoryTalk View ME Station Configuration Mode, tap Reset.
• From the terminal desktop Start Menu, choose Programs>Restart
System.
• To access Maintenance Mode, follow these steps.
a. Plug in a USB keyboard.
b. Press and hold the white box that appears in the bottom left corner
when the terminal is booting up.
Refer to Maintenance Mode Operations
on page 143 for details on how to
restart the terminal from Maintenance Mode.
EXAMPLE Terminals are initially shipped with desktop access disabled. You can
configure your terminal to allow desktop access.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
