Update Firmware Chapter 6
Upgrade Terminal Firmware
over the Network
You can upgrade firmware in a terminal that is connected to a computer over a
direct network connection. The network connection requires a computer that
is running the firmware upgrade wizard (FUW) and RSLinx Enterprise
software, version 5.0 or later.
RSLinx Enterprise software is required so that you can select the terminal on
the network.
Follow these steps to copy firmware files to the terminal over a network by
using RSLinx Enterprise software and Ethernet communication.
1. Run the Firmware Upgrade Wizard:
• In FactoryTalk View Studio software, from the Tools menu, choose
Firmware Upgrade Wizard.
• Choose Start>Programs>Rockwell Software>FactoryTalk
View>Tools>ME Firmware Upgrade Wizard.

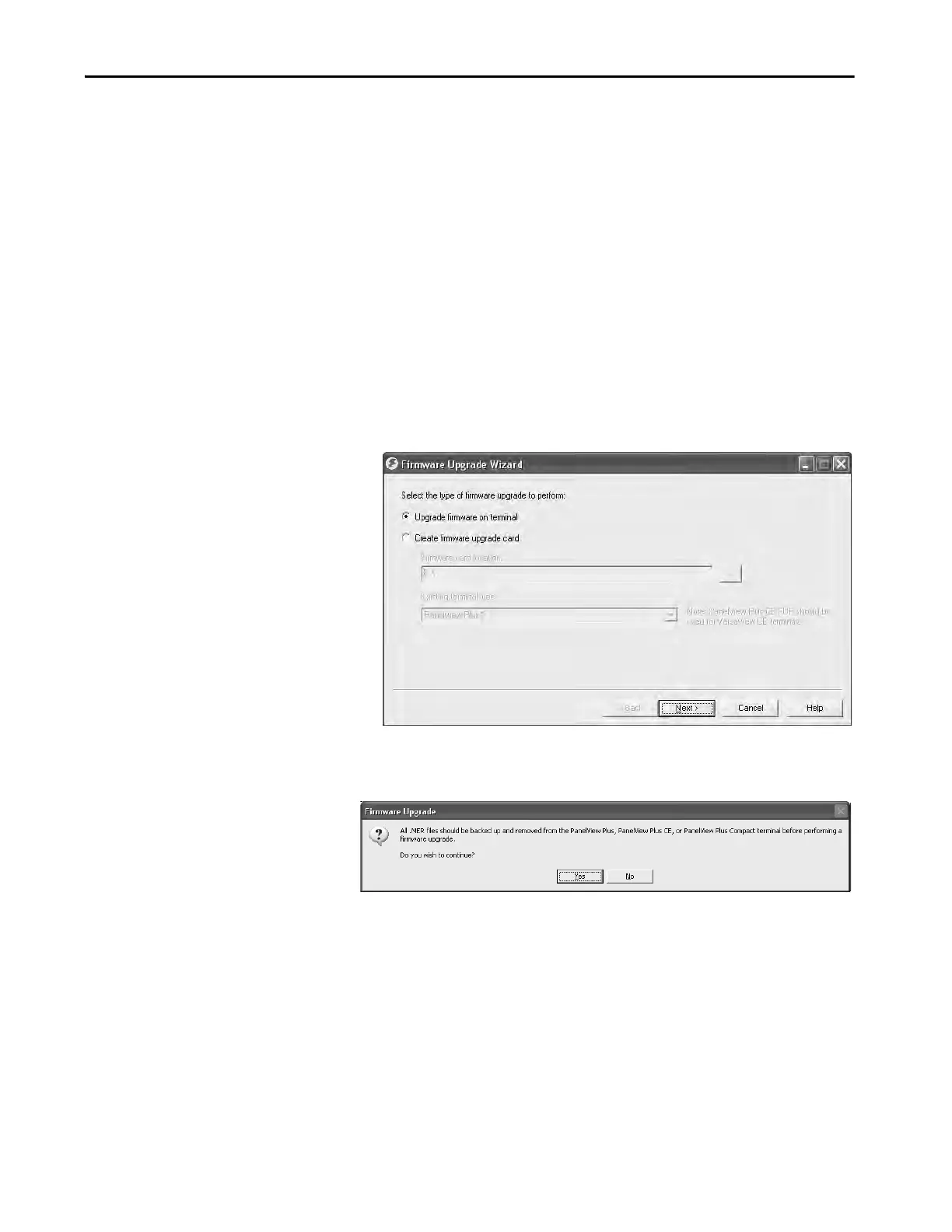

2. Click ‘Upgrade firmware on terminal’ and click Next.
3. To continue, click Yes.
It is not necessary to back up files on PanelView Plus 7 Standard
terminals.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
