Configure Terminal Settings Chapter 3
4. To select Auto, press Ethernet Configuration.
5. To save the configuration, press OK.
6. For the changes to take effect, restart the terminal.
You can also configure the Ethernet ports as a system default for a closed
system. See Configure the Ethernet Ports
on page 111.
Name the Server Addresses
You can name the server addresses for the EtherNet/IP network adapter. These
addresses are automatically assigned if DHCP is enabled for the adapter.

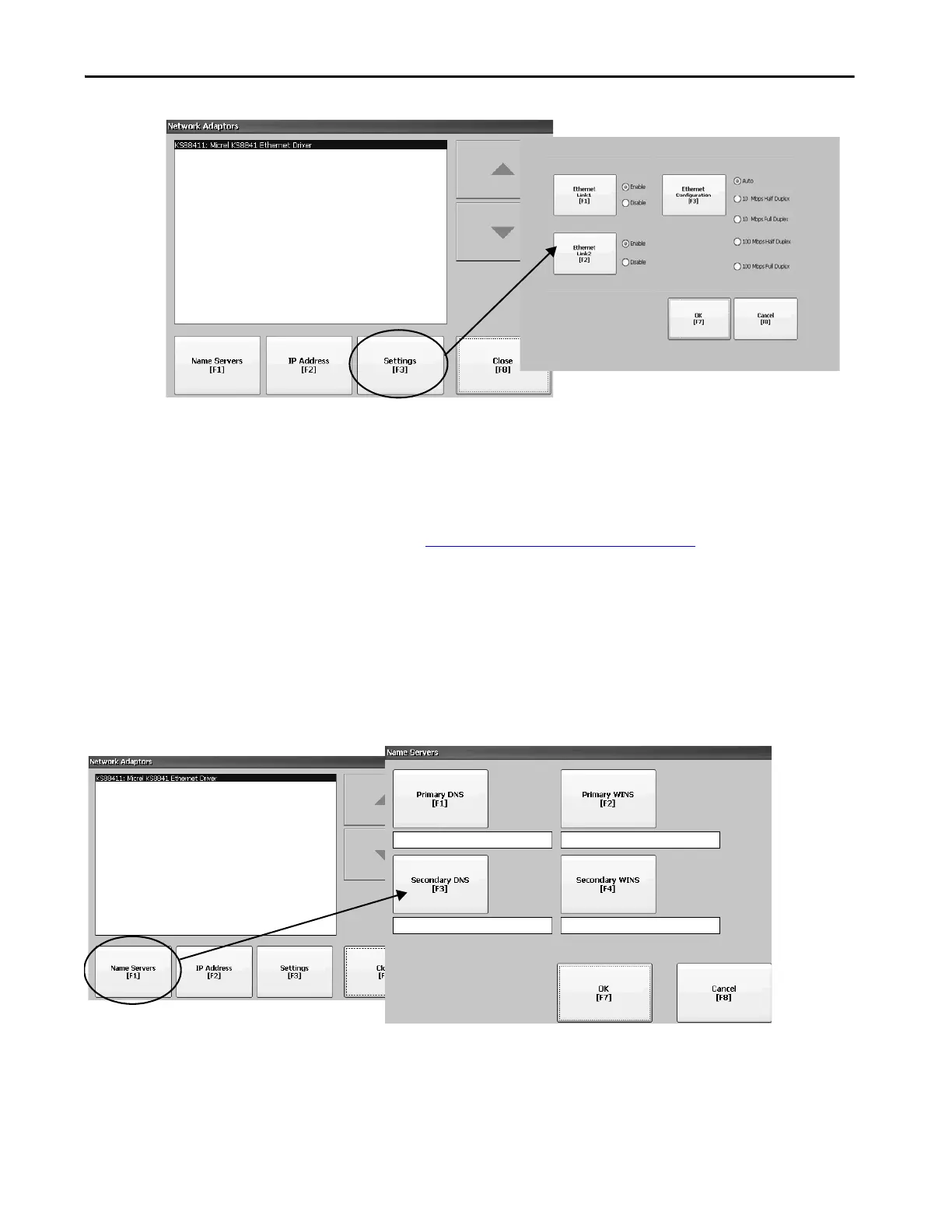

1. Press Terminal Settings, then choose Networks and
Communications>Network Connections>Network Adapters.
2. Press Name Servers.
3. To enter a corresponding name server address, press a button.
4. Press OK when done.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
