Allen-Bradley PanelView Plus 7 User Manual

126 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 5 Install and Replace Components
Hold the peeled back portion of the protective liner out of the way as
you perform the next step.
3. Center the overlay over the bezel and carefully position the adhesive
surface on the terminal.
While the protective liner is still covering the rest of the overlay, verify
that it is properly centered.
4. To press the overlay on the screen, slowly peel off the rest of the liner
while using a soft cloth.
Make sure that the overlay lies flat with no bubbles or warps.
5. With a soft cloth or finger, press around the edges of the overlay to seal
it, and remove any air bubbles trapped in the adhesive.
Clean the Overlay
To clean the overlay, use a clean, lint-free cloth, and a mild glass cleaner that
leaves no streaks. Windex or an eye glass cleaner is recommended. Do not use
cleaners that contain abrasives.
Remove the Overlay
Remove the overlay if it is damaged or needs replacement. Lift a corner and
slowly pull off the overlay. To remove any residual adhesive, use isopropyl
alcohol. Do not reuse the overlay.

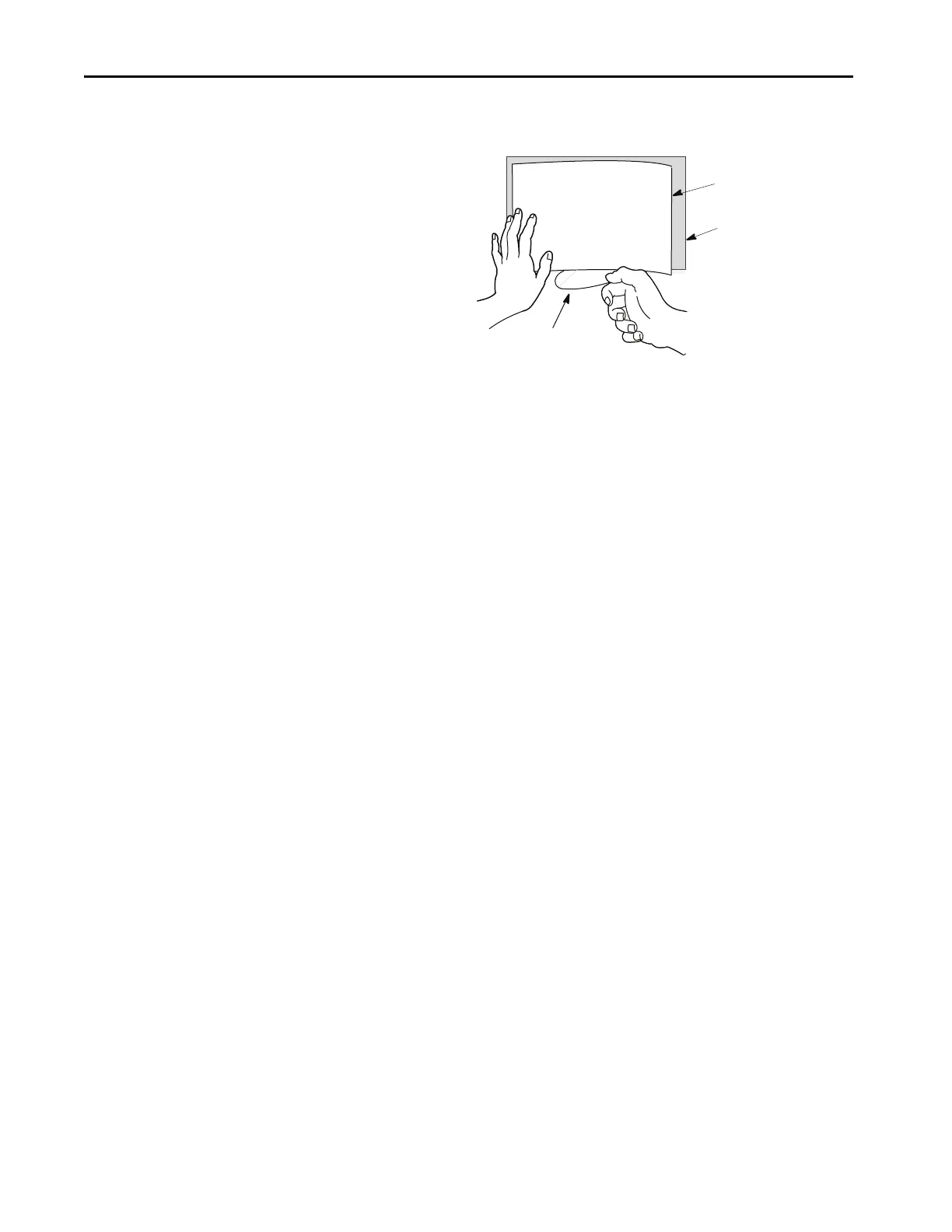

Overlay
Bezel
Protective Liner

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
