Allen-Bradley PanelView Plus 7 User Manual

Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015 67
Configure Terminal Settings Chapter 3
Configure Diagnostics
You can log diagnostics to a remote computer for troubleshooting.
To configure and forward diagnostics to a computer, follow these steps.

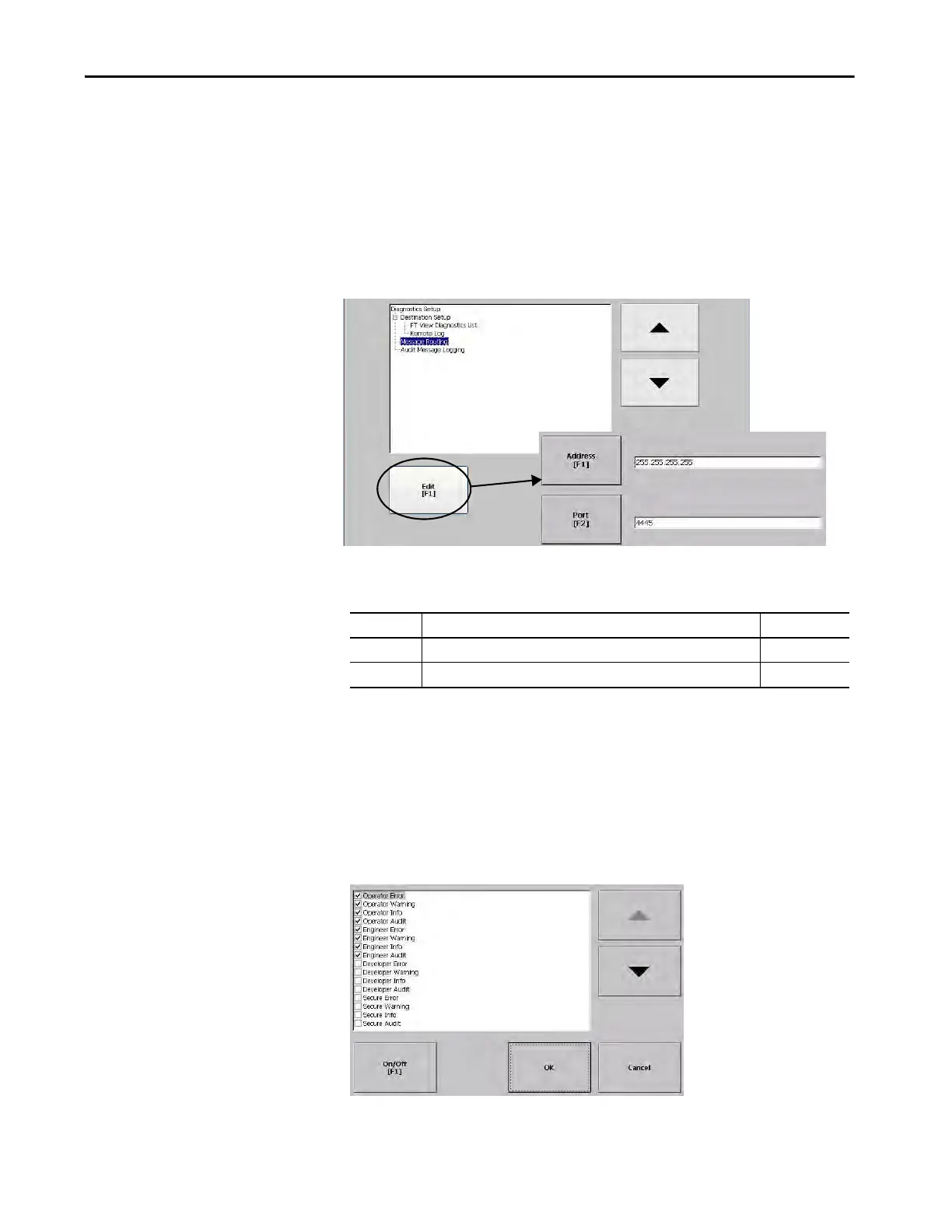

1. Press Terminal Settings, then choose Diagnostic Setup.
A list of diagnostic nodes appears.
The Remote Log destination forwards messages to a Windows computer that
runs diagnostics. The IP address and port number identify the computer.
Select Message Routing to access the following dialog boxes:
•Remote Log
• FactoryTalk View Diagnostics List
Each dialog box shows a list of messages that can be sent to a destination.
Cursor to a message, then press On/Off to enable or disable the message.
Messages with checked boxes are enabled. Messages with cleared boxes are
disabled.
Audit Message Logging lets you log messages as Audit or Information.
TIP To access Remote Log or Message Routing setup, select the node
then press Edit.
Field Description Valid Values
Address IP address of the remote Windows computer. xxx.xxx.xxx.xxx
Port The port that is used to communicate with the remote Windows computer. 4445 (default)

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
