Chapter 1 Overview
• Widescreen on three sizes, 4-in., 9-in., and 12-in. terminals.
• Greater screen resolution.
• Terminals are available with Allen-Bradley® branding, or with no
branding for customers that want to put their own branding around the
terminal.
• Certifications including Class I, Div. 2; Class II, Div. 2; Class III; ATEX
and INMETRO Zones 2 and 22.
Hardware Features

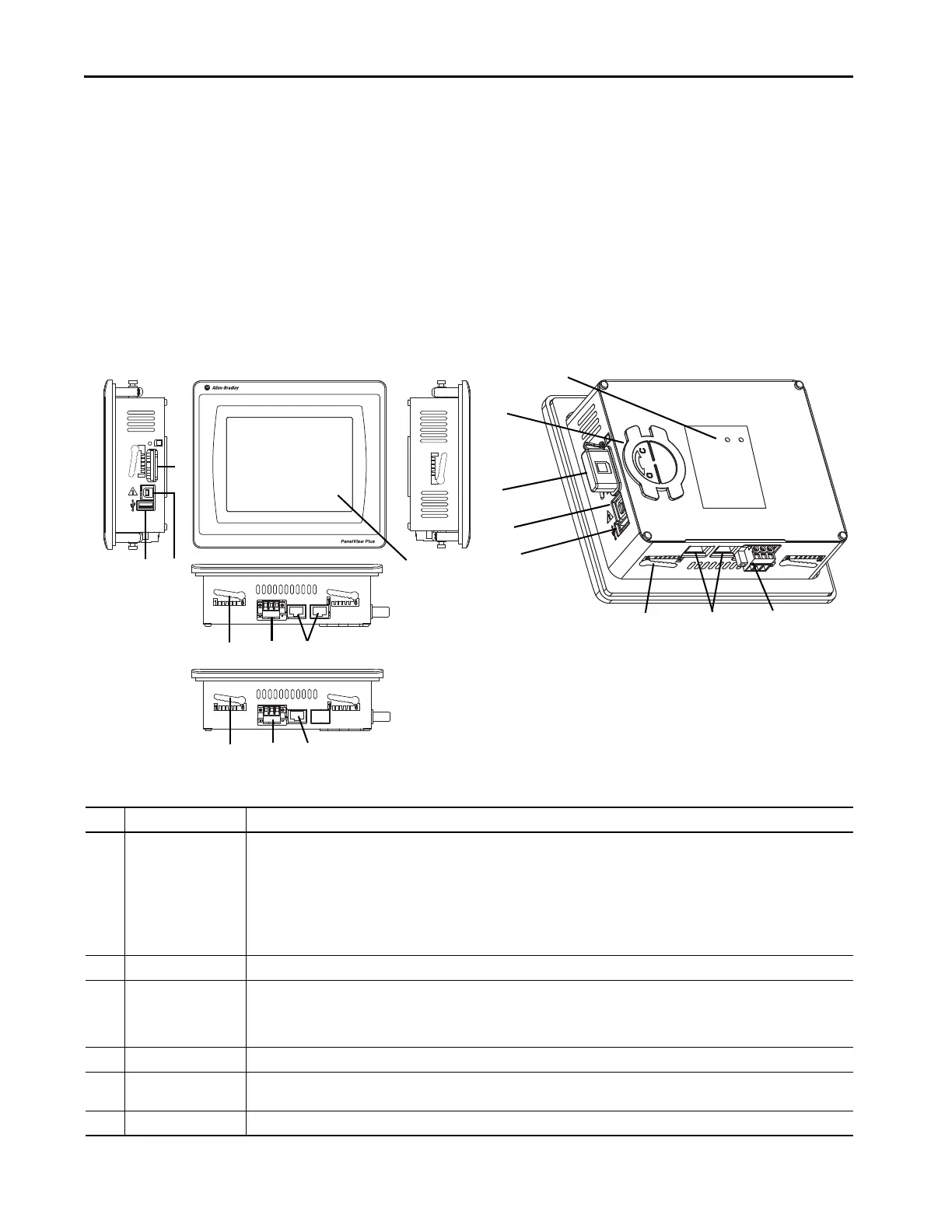

The PanelView Plus 7 Standard terminal features fixed-hardware
configurations in a range of display sizes with touch screen input.
16
2
3
4
5
6
8
9
7
1
3
2
5
6
4
7
324
Series A and Series B terminals
with one Ethernet port.
Series B terminals with dual
Ethernet ports.
Throughout this user manual, illustrations show the
Series B terminals with dual Ethernet ports.
Table 1 - Hardware Features
Item Feature Description
1 Display/Touch screen TFT color graphic display with a touch screen in a range of sizes:
• 4.3-in. wide screen touch (WQVGA)
•5.7-in. touch (VGA)
•6.5-in. touch (VGA)
• 9.0-in. wide screen touch (WVGA)
• 10.4-in. touch (SVGA)
• 12.1-in. wide screen with touch (WXGA)
• 15.0-in. touch (XGA)
2 Power 24V DC nom (18…30V DC) nonisolated power input
3Ethernet port
(1 or 2)
• One 10/100Base-T, Auto MDI/MDI-X, Ethernet port for controller communication and IEEE 1588 support for synchronization of
network-connected devices (Series A and Series B terminals).
• Two 10/100Base-T, Auto MDI/MDI-X, Ethernet ports for controller communication that supports Device Level Ring (DLR) network
topology (Series B terminals).
4 Mounting slots Mounting levers insert into the slots to mount device in a panel or enclosure. The number of slots varies by terminal size.
5 Universal serial bus (USB)
host port
One USB 2.0 high-speed (type A) host port.
6 USB device port One USB 2.0 high-speed (type B) device port for connecting a host computer.
