Allen-Bradley PanelView Plus 7 User Manual

112 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 4 Windows Operating System

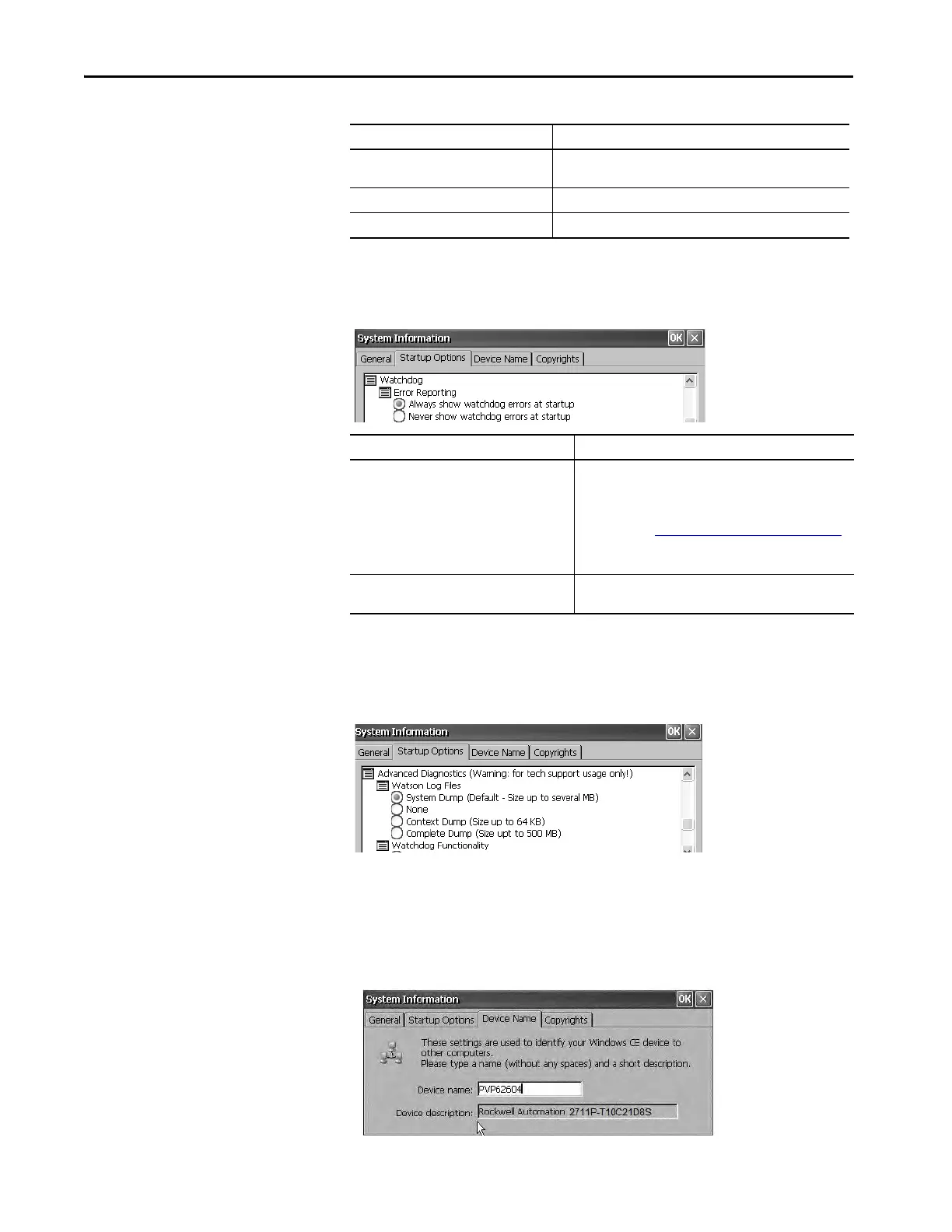

Watchdog Errors
You can show or hide watchdog errors at startup.
Advanced Diagnostics
Advanced diagnostics are for technical support use to diagnose and resolve
system errors. They are not for use in a normal production environment.
Device Name
The Device Name tab of System Information identifies your terminal to other
devices on the network by providing a device name and description.
Port (Link) Configuration Description
Port 1 (Link 1) and Port 2 (Link 2) Enabled Enables Link 1 and Link 2 Ethernet connections for DLR
configuration.
Port 1 (Link 1) Only Enabled Enables Link 1 Ethernet connection for star or linear configuration.
Port 2 (Link 2) Only Enabled Enables Link 2 Ethernet
Watchdog Error Options Description
Always show watchdog errors at startup Shows the fatal watchdog error (error 02) at startup and halts
the normal boot process. This option is the default.
The system launches the maintenance window with the
watchdog error displayed. You can continue booting from this
window. Refer to Maintenance Mode Operations
on page 143
for details.
The error is logged to the System Event log.
Never show watchdog errors at startup Hides the errors at startup and adds the error to the system
event log.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
